The Ultimate Guide to Genie Material Handling Equipment

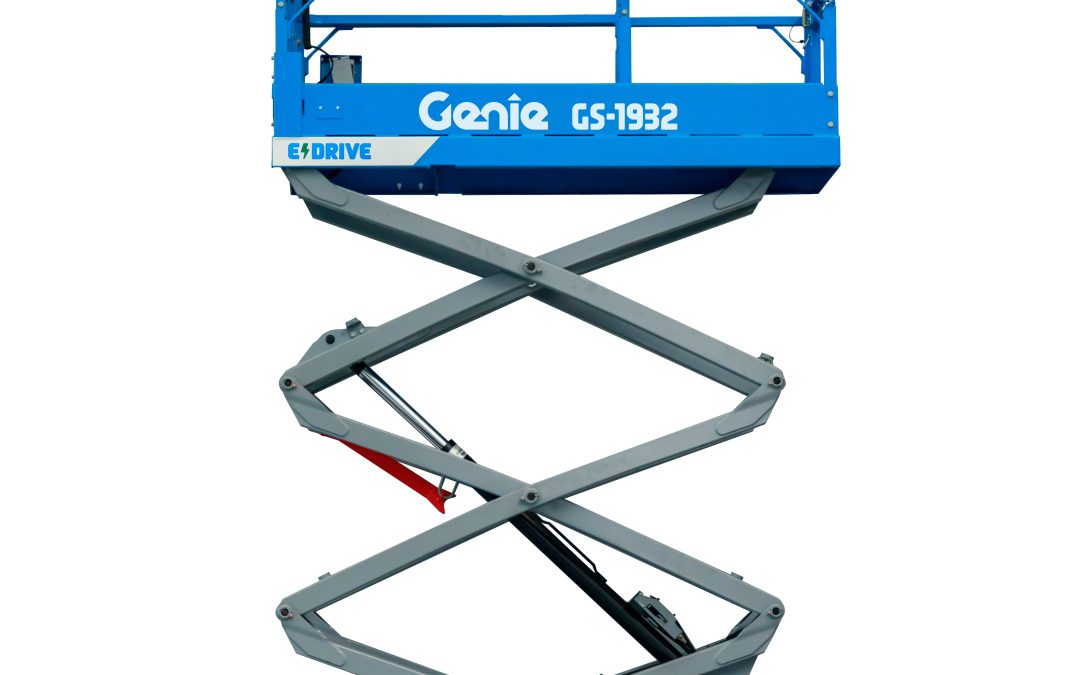

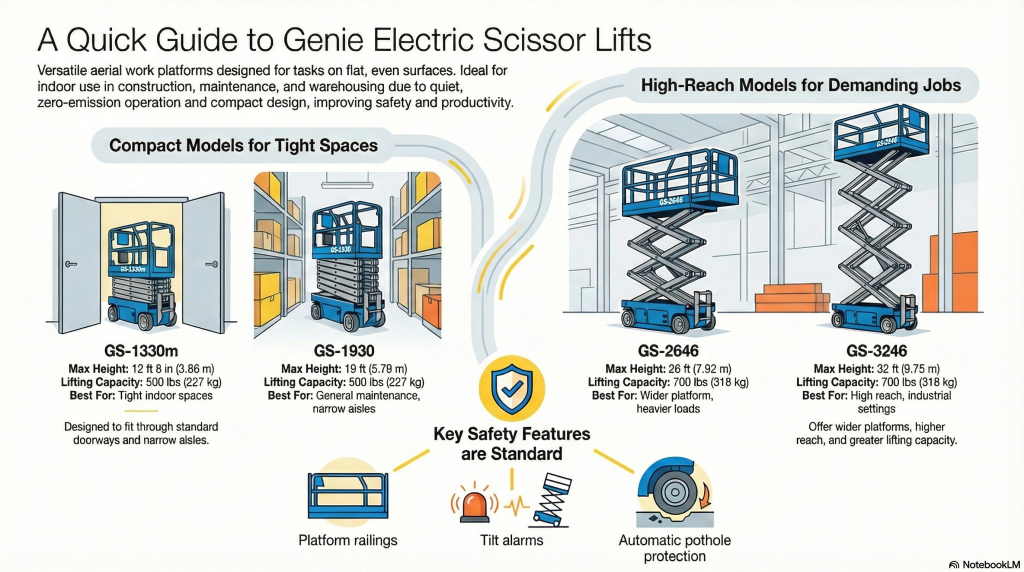

Genie Electric Scissor Lifts
Electric scissor lifts, also known as slab scissor lifts, are aerial work platforms designed for indoor and outdoor use on flat, even surfaces. These lifts provide a safe and efficient way to elevate workers and materials to perform tasks at height. They are essential tools for a variety of industries, offering a stable and versatile platform for maintenance, construction, installation, and warehouse operations.
The benefits of using electric scissor lifts include their quiet operation, zero emissions, and compact design, making them ideal for indoor environments and areas with strict noise regulations. Their maneuverability and ease of use contribute to increased productivity and reduced labor costs. Electric scissor lifts are also designed with safety features such as platform railings, emergency stop buttons, and tilt sensors to ensure operator well-being.
Genie is a leading manufacturer of aerial work platforms, known for their reliability, durability, and innovative designs. Their electric scissor lifts are engineered to meet the demands of various job sites, offering a range of models with different heights, capacities, and features. This section provides a comprehensive overview of the Genie electric scissor lift range, exploring the key features and specifications of each model to help you choose the right lift for your specific needs.
Genie GS-1330m
The Genie GS-1330m is a compact and lightweight electric scissor lift designed for indoor use. It’s ideal for navigating tight spaces and maneuvering through standard doorways. This model is perfect for maintenance tasks, light construction, and installation work in warehouses, retail environments, and office buildings. Its proportional controls and quiet operation enhance productivity and operator comfort.
Key Features
✓Compact dimensions – Easily fits through standard doorways and tight spaces.
✓Lightweight design – Facilitates easy transport and maneuverability.
✓Proportional controls – Provides smooth and precise operation.
✓Quiet electric drive – Suitable for noise-sensitive environments.
✓Integrated component design – Offers easy access for maintenance.
✓Automatic pothole protection – Enhances safety and stability.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓Tilt sensor – Prevents operation on uneven surfaces.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
12 ft 8 in (3.86 m)
Platform Size
28 in x 55 in (0.71 m x 1.40 m)
Machine Weight
1,975 lbs (896 kg)
Power Source
24 V DC Electric
Stowed Height
6 ft 7 in (2.01 m)
Stowed Length
4 ft 7 in (1.40 m)
Stowed Width
2 ft 8 in (0.81 m)
Lift Speed
24 seconds (up) / 24 seconds (down)
Travel Speed
2.2 mph (3.5 km/h)
Controls
Proportional
Drive System
Electric
Genie GS-1930
The Genie GS-1930 is a popular electric scissor lift known for its versatility and reliability. It is well-suited for a wide range of applications, including general construction, maintenance, and installation tasks. Its narrow width allows it to navigate through congested work areas, while its ample platform space provides room for workers and materials. This model offers a combination of performance and value.
Key Features
✓Narrow width – Provides excellent maneuverability in tight spaces.
✓High lifting capacity – Allows for carrying multiple workers and tools.
✓Proportional controls – Ensures smooth and precise operation.
✓Folding rails – Simplifies transport and storage.
✓Automatic pothole protection – Enhances safety and stability.
✓AC power to platform – Provides power for tools and equipment.
✓Tilt alarm – Alerts operator to unsafe conditions.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
19 ft (5.79 m)
Platform Size
30 in x 64 in (0.76 m x 1.63 m)
Machine Weight
3,220 lbs (1,460 kg)
Power Source
24 V DC Electric
Stowed Height
6 ft 7 in (2.01 m) (with rails folded)
Stowed Length
5 ft 11 in (1.80 m)
Stowed Width
2 ft 6 in (0.76 m)
Lift Speed
32 seconds (up) / 28 seconds (down)
Travel Speed
2.2 mph (3.5 km/h)
Controls
Proportional
Drive System
Electric
Genie GS-2032
The Genie GS-2032 electric scissor lift offers a balance of height and capacity, making it suitable for a variety of indoor and outdoor applications. Its wider platform provides more workspace, while its efficient electric drive system delivers long run times. This model is ideal for tasks such as painting, electrical work, and general maintenance in commercial and industrial settings.
Key Features
✓Wider platform – Provides ample workspace for operators and materials.
✓High lifting capacity – Allows for carrying multiple workers and tools.
✓Proportional controls – Ensures smooth and precise operation.
✓Folding rails – Simplifies transport and storage.
✓Automatic pothole protection – Enhances safety and stability.
✓AC power to platform – Provides power for tools and equipment.
✓Tilt alarm – Alerts operator to unsafe conditions.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
20 ft (6.10 m)
Platform Size
32 in x 72 in (0.81 m x 1.83 m)
Machine Weight
3,570 lbs (1,620 kg)
Power Source
24 V DC Electric
Stowed Height
6 ft 10 in (2.08 m) (with rails folded)
Stowed Length
5 ft 11 in (1.80 m)
Stowed Width
2 ft 8 in (0.81 m)
Lift Speed
34 seconds (up) / 30 seconds (down)
Travel Speed
2.2 mph (3.5 km/h)
Controls
Proportional
Drive System
Electric
Genie GS-2632
The Genie GS-2632 is a versatile electric access platform designed for both indoor and outdoor use. With a working height of up to 32 feet, it’s suitable for a wide range of tasks, including construction, maintenance, and installation. Its narrow width allows it to navigate through congested work areas, while its robust design ensures reliable performance. This model is a popular choice for contractors and rental companies.
Key Features
✓Narrow width – Provides excellent maneuverability in tight spaces.
✓High lifting capacity – Allows for carrying multiple workers and tools.
✓Proportional controls – Ensures smooth and precise operation.
✓Folding rails – Simplifies transport and storage.
✓Automatic pothole protection – Enhances safety and stability.
✓AC power to platform – Provides power for tools and equipment.
✓Tilt alarm – Alerts operator to unsafe conditions.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
26 ft (7.92 m)
Platform Size
32 in x 72 in (0.81 m x 1.83 m)
Machine Weight
4,380 lbs (1,990 kg)
Power Source
24 V DC Electric
Stowed Height
7 ft 8 in (2.34 m) (with rails folded)
Stowed Length
7 ft 11 in (2.41 m)
Stowed Width
2 ft 8 in (0.81 m)
Lift Speed
40 seconds (up) / 34 seconds (down)
Travel Speed
2.2 mph (3.5 km/h)
Controls
Proportional
Drive System
Electric
Genie GS-2646
The Genie GS-2646 electric scissor lift offers a wider platform and higher lifting capacity compared to the GS-2632, making it ideal for tasks that require more workspace or the ability to lift heavier loads. Its robust design and reliable performance make it a popular choice for construction, maintenance, and installation applications. This model is well-suited for both indoor and outdoor use.
Key Features
✓Wide platform – Provides ample workspace for operators and materials.
✓High lifting capacity – Allows for carrying multiple workers and tools.
✓Proportional controls – Ensures smooth and precise operation.
✓Folding rails – Simplifies transport and storage.
✓Automatic pothole protection – Enhances safety and stability.
✓AC power to platform – Provides power for tools and equipment.
✓Tilt alarm – Alerts operator to unsafe conditions.
Technical Specifications
Lifting Capacity
700 lbs (318 kg)
Maximum Height
26 ft (7.92 m)
Platform Size
46 in x 72 in (1.17 m x 1.83 m)
Machine Weight
4,660 lbs (2,114 kg)
Power Source
24 V DC Electric
Stowed Height
7 ft 8 in (2.34 m) (with rails folded)
Stowed Length
7 ft 11 in (2.41 m)
Stowed Width
3 ft 10 in (1.17 m)
Lift Speed
40 seconds (up) / 34 seconds (down)
Travel Speed
2.2 mph (3.5 km/h)
Controls
Proportional
Drive System
Electric
Genie GS-3246
The Genie GS-3246 electric scissor lift provides a higher working height and wider platform than the GS-2646, making it suitable for more demanding applications. Its robust design and reliable performance ensure long-lasting durability. This model is ideal for construction, maintenance, and installation tasks in industrial and commercial settings.
Key Features
✓Wide platform – Provides ample workspace for operators and materials.
✓High lifting capacity – Allows for carrying multiple workers and tools.
✓Proportional controls – Ensures smooth and precise operation.
What are the primary benefits of using an electric scissor lift?
Electric scissor lifts offer several advantages, including quiet operation, zero emissions, and excellent maneuverability. They are ideal for indoor use where noise and air quality are concerns. Additionally, their compact size allows them to navigate through narrow aisles and congested work areas, enhancing productivity and efficiency.
What safety features are typically included on Genie electric scissor lifts?
Genie electric scissor lifts are equipped with a range of safety features, such as platform railings, emergency stop buttons, tilt sensors, and automatic pothole protection. These features help to prevent accidents and ensure operator safety by maintaining stability, preventing operation on uneven surfaces, and providing a secure working environment.
How do I choose the right electric scissor lift for my specific needs?
Selecting the appropriate electric scissor lift depends on factors such as the maximum working height required, the lifting capacity needed, and the size of the workspace. Consider the environment where the lift will be used (indoor or outdoor), the type of tasks to be performed, and any space limitations. Evaluate the specifications of each model to determine the best fit for your application.
What is the difference between the Genie GS-2632 and GS-2646 models?
The main differences between the Genie GS-2632 and GS-2646 models are the platform size and lifting capacity. The GS-2646 has a wider platform (46 inches vs. 32 inches) and a higher lifting capacity (700 lbs vs. 500 lbs) compared to the GS-2632. This makes the GS-2646 more suitable for tasks requiring more workspace or the ability to lift heavier loads.
How often should an electric scissor lift be serviced and maintained?
Regular maintenance is crucial for ensuring the safe and reliable operation of electric scissor lifts. It is recommended to follow the manufacturer’s guidelines for scheduled maintenance, which typically includes inspections, lubrication, and battery maintenance. The frequency of service depends on the usage and operating conditions of the lift, but a general guideline is to perform routine checks before each use and schedule professional servicing at least annually.
Can Genie electric scissor lifts be used outdoors?
Yes, many Genie electric scissor lift models, such as the GS-2632, GS-2646, and GS-3246, are designed for both indoor and outdoor use. However, it is essential to operate them on flat, even surfaces and to avoid using them in adverse weather conditions such as high winds or heavy rain. Always consult the operator’s manual for specific guidelines and limitations regarding outdoor use.

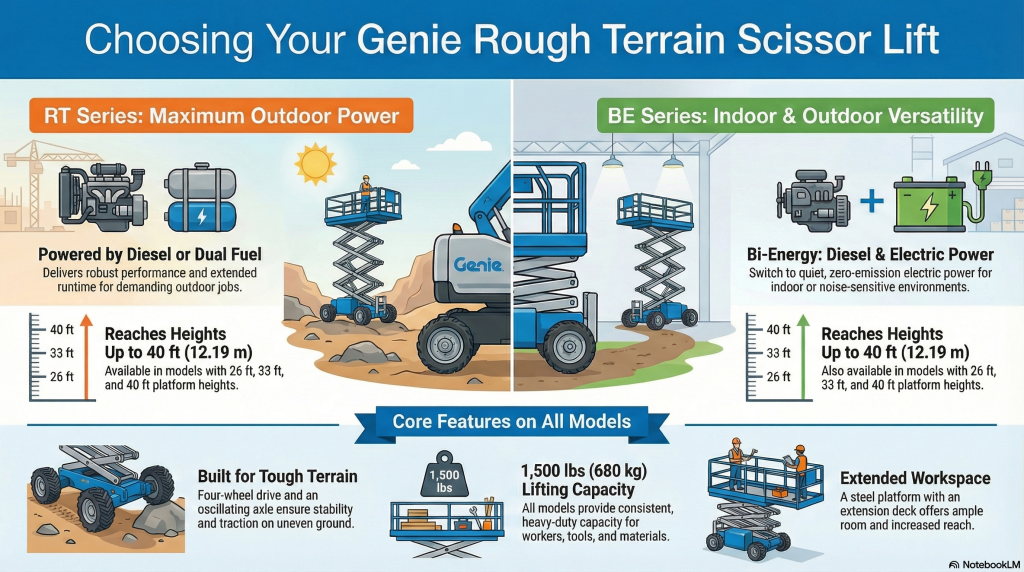

Genie Rough Terrain Scissor Lifts
Rough terrain scissor lifts are essential pieces of equipment designed to provide a safe and efficient platform for working at height on uneven and challenging surfaces. Unlike standard scissor lifts, these machines are built with robust tires, powerful engines, and often four-wheel drive, enabling them to navigate construction sites, outdoor events, and agricultural settings with ease. They offer a stable and spacious platform for workers to perform tasks ranging from installation and maintenance to painting and repairs.
The primary benefits of rough terrain scissor lifts include enhanced stability, increased maneuverability on difficult terrain, and greater lifting capacity compared to standard models. These features make them ideal for a wide range of applications, including construction, landscaping, agriculture, and event setup. Their ability to operate in challenging environments significantly improves productivity and safety for workers operating at height.
Genie is a leading manufacturer of aerial work platforms, renowned for its innovative designs, reliable performance, and commitment to safety. Their range of rough terrain scissor lifts is specifically engineered to meet the demands of challenging job sites, offering a variety of models with different heights, capacities, and features.

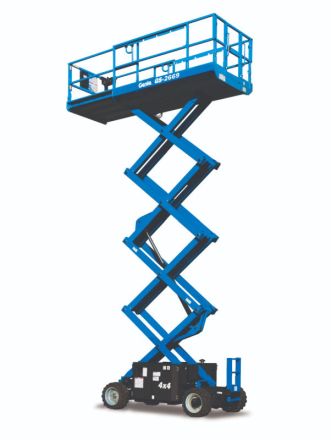

Genie GS-2669 RT
The Genie GS-2669 RT rough terrain scissor lift is a robust and reliable machine designed for navigating challenging outdoor environments. With its oscillating axle and positive traction, it provides superior stability and maneuverability on uneven surfaces. This model is ideal for construction sites, agricultural settings, and any outdoor application where a stable and elevated work platform is required.
Key Features
✓Oscillating axle – Maintains ground contact on uneven surfaces for enhanced stability
✓Positive traction – Ensures reliable performance in challenging terrain
✓Proportional lift and drive controls – Provides smooth and precise operation
✓Fold-down handrails – Allows for easy passage through doorways and confined spaces
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓Engine protection package – Protects engine components from damage
✓Four-wheel drive – Delivers superior traction and mobility
✓Easy access to components – Simplifies maintenance and servicing
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
26 ft (7.92 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
7,300 lbs (3,311 kg)
Power Source
Diesel or Dual Fuel (Gas/LPG)
Stowed Height
7.83 ft (2.39 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
41 seconds (up) / 47 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Genie GS-3369 RT
The Genie GS-3369 RT rough terrain scissor lift is a powerful and versatile machine designed for demanding job sites. It offers a higher platform height and increased lifting capacity compared to the GS-2669 RT, making it suitable for a wider range of applications. Its robust construction and four-wheel drive ensure reliable performance in challenging terrain, while its user-friendly controls enhance operator productivity.
Key Features
✓Oscillating axle – Provides enhanced stability on uneven surfaces
✓Positive traction – Delivers reliable performance in challenging conditions
✓Proportional lift and drive controls – Ensures smooth and precise operation
✓Fold-down handrails – Facilitates easy transport and storage
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓Engine protection package – Safeguards engine components from damage
✓Four-wheel drive – Provides superior traction and maneuverability
✓On-board diagnostics – Simplifies troubleshooting and maintenance
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
33 ft (10.06 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
7,900 lbs (3,583 kg)
Power Source
Diesel or Dual Fuel (Gas/LPG)
Stowed Height
8.5 ft (2.59 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
52 seconds (up) / 58 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Genie GS-4069 RT
The Genie GS-4069 RT is a high-performance rough terrain scissor lift designed for maximum productivity and versatility. With its impressive platform height and robust construction, it is ideal for demanding applications in construction, maintenance, and industrial settings. Its oscillating axle and four-wheel drive provide exceptional stability and maneuverability on even the most challenging terrain, ensuring safe and efficient operation.
Key Features
✓Oscillating axle – Maintains ground contact on uneven surfaces
✓Positive traction – Ensures reliable performance in rough terrain
✓Proportional lift and drive controls – Provides smooth and precise operation
✓Fold-down handrails – Allows for easy passage through doorways
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓Engine protection package – Protects engine components from damage
✓Four-wheel drive – Delivers superior traction and mobility
✓On-board diagnostics – Simplifies troubleshooting and maintenance
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
40 ft (12.19 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
8,600 lbs (3,901 kg)
Power Source
Diesel or Dual Fuel (Gas/LPG)
Stowed Height
9.17 ft (2.80 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
63 seconds (up) / 70 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Genie GS-2669 BE
The Genie GS-2669 BE is a bi-energy, rough-terrain scissor lift, offering the flexibility of both electric and diesel power. This makes it ideal for indoor and outdoor applications, providing quiet, emission-free operation indoors while delivering the power and performance needed for challenging outdoor environments. It’s a versatile machine suitable for a wide range of tasks, from construction and maintenance to facility management.
Key Features
✓Bi-energy operation – Offers both electric and diesel power options
✓Oscillating axle – Provides enhanced stability on uneven surfaces
✓Positive traction – Ensures reliable performance in challenging terrain
✓Proportional lift and drive controls – Provides smooth and precise operation
✓Fold-down handrails – Allows for easy passage through doorways and confined spaces
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓AC power to platform – Provides power for tools and equipment
✓Four-wheel drive – Delivers superior traction and mobility
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
26 ft (7.92 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
7,700 lbs (3,493 kg)
Power Source
Diesel/Electric
Stowed Height
7.83 ft (2.39 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
41 seconds (up) / 47 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Genie GS-3369 BE
The Genie GS-3369 BE is another bi-energy rough terrain scissor lift in the Genie lineup. Similar to the GS-2669 BE, this model offers the dual power source capability, combining electric and diesel operation. However, the GS-3369 BE provides a higher maximum platform height, making it suitable for applications requiring greater vertical reach. Its versatility and robust design make it a valuable asset for various job sites.
Key Features
✓Bi-energy operation – Offers both electric and diesel power options
✓Oscillating axle – Provides enhanced stability on uneven surfaces
✓Positive traction – Ensures reliable performance in challenging terrain
✓Proportional lift and drive controls – Provides smooth and precise operation
✓Fold-down handrails – Allows for easy transport and storage
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓AC power to platform – Provides power for tools and equipment
✓Four-wheel drive – Provides superior traction and maneuverability
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
33 ft (10.06 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
8,300 lbs (3,765 kg)
Power Source
Diesel/Electric
Stowed Height
8.5 ft (2.59 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
52 seconds (up) / 58 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Genie GS-4069 BE
The Genie GS-4069 BE is the highest-reaching bi-energy rough terrain scissor lift in the Genie range. It combines the benefits of electric and diesel power with a maximum platform height of 40 feet, making it suitable for the most demanding applications. Its robust construction, oscillating axle, and four-wheel drive ensure reliable performance in any environment, while its bi-energy operation provides flexibility and versatility.
Key Features
✓Bi-energy operation – Offers both electric and diesel power options
✓Oscillating axle – Maintains ground contact on uneven surfaces
✓Positive traction – Ensures reliable performance in rough terrain
✓Proportional lift and drive controls – Provides smooth and precise operation
✓Fold-down handrails – Allows for easy passage through doorways
✓Steel platform with extension deck – Offers ample workspace and increased reach
✓AC power to platform – Provides power for tools and equipment
✓Four-wheel drive – Delivers superior traction and mobility
Technical Specifications
Lifting Capacity
1,500 lbs (680 kg)
Maximum Height
40 ft (12.19 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
9,000 lbs (4,082 kg)
Power Source
Diesel/Electric
Stowed Height
9.17 ft (2.80 m)
Stowed Length
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
Lift Speed
63 seconds (up) / 70 seconds (down)
Travel Speed
3.5 mph (5.6 km/h)
Controls
Proportional
Drive System
Four-wheel drive
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie GS-2669 RT
Genie GS-3369 RT
Genie GS-4069 RT
Genie GS-2669 BE
Genie GS-3369 BE
Genie GS-4069 BE
Lifting Capacity
1,500 lbs (680 kg)
1,500 lbs (680 kg)
1,500 lbs (680 kg)
1,500 lbs (680 kg)
1,500 lbs (680 kg)
1,500 lbs (680 kg)
Maximum Height
26 ft (7.92 m)
33 ft (10.06 m)
40 ft (12.19 m)
26 ft (7.92 m)
33 ft (10.06 m)
40 ft (12.19 m)
Platform Size
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
5.67 ft x 13.33 ft (1.73 m x 4.06 m)
Machine Weight
7,300 lbs (3,311 kg)
7,900 lbs (3,583 kg)
8,600 lbs (3,901 kg)
7,700 lbs (3,493 kg)
8,300 lbs (3,765 kg)
9,000 lbs (4,082 kg)
Stowed Height
7.83 ft (2.39 m)
8.5 ft (2.59 m)
9.17 ft (2.80 m)
7.83 ft (2.39 m)
8.5 ft (2.59 m)
9.17 ft (2.80 m)
Stowed Length
10.17 ft (3.10 m)
10.17 ft (3.10 m)
10.17 ft (3.10 m)
10.17 ft (3.10 m)
10.17 ft (3.10 m)
10.17 ft (3.10 m)
Stowed Width
5.67 ft (1.73 m)
5.67 ft (1.73 m)
5.67 ft (1.73 m)
5.67 ft (1.73 m)
5.67 ft (1.73 m)
5.67 ft (1.73 m)
Power Source
Diesel or Dual Fuel
Diesel or Dual Fuel
Diesel or Dual Fuel
Diesel/Electric
Diesel/Electric
Diesel/Electric
Lift Speed
41/47 seconds
52/58 seconds
63/70 seconds
41/47 seconds
52/58 seconds
63/70 seconds
Travel Speed
3.5 mph (5.6 km/h)
3.5 mph (5.6 km/h)
3.5 mph (5.6 km/h)
3.5 mph (5.6 km/h)
3.5 mph (5.6 km/h)
3.5 mph (5.6 km/h)
Controls
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Best Application
General Construction
Higher Reach Construction
Maximum Height Construction
Indoor/Outdoor Flexibility
Higher Reach, Indoor/Outdoor
Maximum Height, Indoor/Outdoor
Frequently Asked Questions
What is the primary advantage of a rough-terrain scissor lift over a standard scissor lift?
The primary advantage of a rough-terrain scissor lift is its ability to operate on uneven and challenging surfaces. These lifts are equipped with features like oscillating axles, four-wheel drive, and robust tires, allowing them to maintain stability and traction on construction sites, agricultural fields, and other outdoor environments where standard scissor lifts would struggle.
What types of power sources are available for Genie rough terrain scissor lifts?
Genie offers rough terrain scissor lifts with both diesel and bi-energy (diesel/electric) power options. Diesel-powered models are ideal for demanding outdoor applications where maximum power and runtime are required. Bi-energy models offer the flexibility of operating on electric power indoors, providing quiet and emission-free operation, while still having the diesel engine for outdoor use.
How does the oscillating axle improve the performance of a rough-terrain scissor lift?
The oscillating axle allows the wheels of the scissor lift to move independently of each other, maintaining ground contact even on uneven surfaces. This significantly improves stability and reduces the risk of tipping, allowing the operator to work safely and efficiently in challenging terrain. It ensures that the lift remains level and stable, providing a secure platform for workers.
What is the purpose of the platform extension deck on Genie rough terrain scissor lifts?
The platform extension deck provides additional workspace and reach for the operator. It allows them to extend the platform beyond the base of the lift, enabling them to access areas that would otherwise be difficult to reach. This feature is particularly useful for tasks such as painting, installing fixtures, or performing maintenance in tight spaces.
What safety features are included on Genie rough terrain scissor lifts?
Genie rough terrain scissor lifts are equipped with a range of safety features, including proportional controls for smooth and precise operation, fold-down handrails for easy transport and storage, and engine protection packages to safeguard critical components. Additionally, features like oscillating axles and positive traction enhance stability and prevent slippage, ensuring a safe working environment.
What maintenance is required for Genie rough terrain scissor lifts?
Regular maintenance is crucial for ensuring the reliable performance and longevity of Genie rough terrain scissor lifts. This includes checking fluid levels, inspecting tires and brakes, lubricating moving parts, and performing regular engine servicing. Genie also provides on-board diagnostics to simplify troubleshooting and maintenance, allowing technicians to quickly identify and resolve any issues.

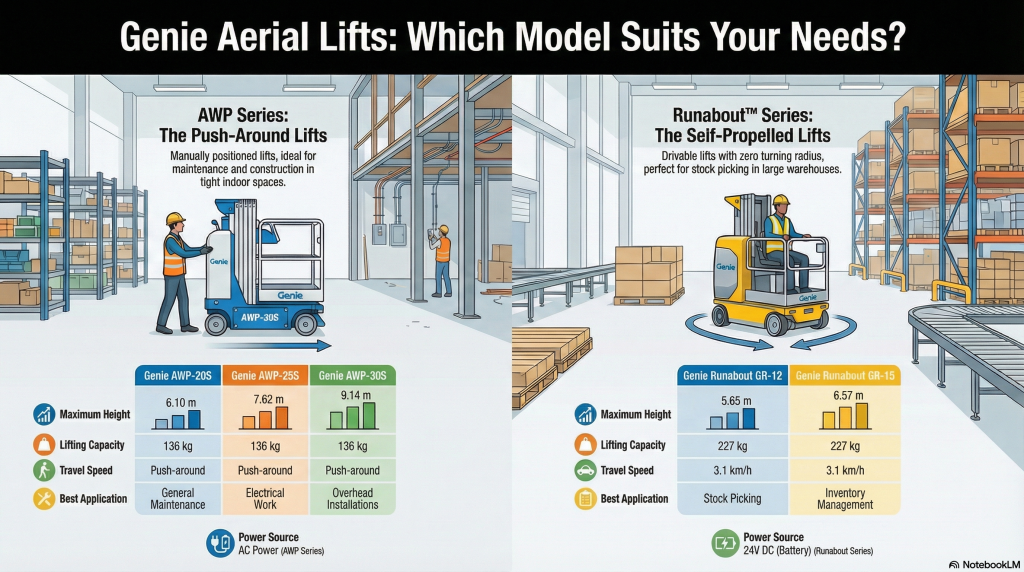

Genie Aerial Work Platforms and Push-Around Lifts
Aerial Work Platforms (AWPs), including push-around lifts, are essential pieces of equipment designed to provide safe and efficient access to elevated areas. These platforms enable workers to perform tasks at height with stability and maneuverability, making them indispensable in various industries. Genie, a leading manufacturer, offers a diverse range of AWPs tailored to meet the specific needs of different applications.
The benefits of using Genie AWPs are numerous. They enhance safety by providing a stable work platform, increase productivity by allowing workers to reach elevated areas quickly and easily, and offer versatility for various tasks, from maintenance and repair to installation and inspection. These lifts are particularly useful in environments where scaffolding is impractical or time-consuming to set up.
Genie stands out as a trusted name in the AWP industry due to its commitment to innovation, quality, and safety. Their machines are engineered for durability, reliability, and ease of use, ensuring optimal performance in demanding work environments. We provide an overview of the Genie AWP and push-around lift range, exploring the features and specifications of each model.
Genie AWP-20S
The Genie AWP-20S is a lightweight and highly portable aerial work platform designed for one-person operation. It’s ideal for various applications, including stock picking, general maintenance, and light construction work. This model boasts a compact design that allows it to fit through standard doorways and navigate tight spaces, making it perfect for indoor use. Its ease of setup and operation contributes to increased productivity and efficiency on the job site.
Key Features
✓Tilt-back frame – allows the AWP-20S to roll through standard doorways.
✓Easy setup – simplifies operation and improves productivity.
✓Durable aluminum construction – ensures reliability and longevity.
✓Small outrigger footprint – allows positioning close to walls.
✓Rock solid platform – provides a secure and stable work area.
✓Optional auxiliary platform – provides additional working space.
✓Multiple base options – for various application needs.
Technical Specifications
Lifting Capacity
136 kg
Maximum Height
6.10 m
Platform Size
0.66 m x 0.66 m
Machine Weight
324 kg
Power Source
110V AC or 220V AC
Stowed Height
1.98 m
Stowed Length
1.35 m
Stowed Width
0.74 m
Lift Speed
20 seconds
Travel Speed
Push-around
Controls
Platform and base controls
Drive System
Manual Push
Genie AWP-25S
The Genie AWP-25S is a versatile aerial work platform designed for a wide range of applications, offering a higher working height than the AWP-20S. It’s suitable for tasks such as electrical work, HVAC maintenance, and facility repairs. This model is known for its ease of use, portability, and robust construction, ensuring reliable performance in various indoor environments. Its quick setup and simple operation make it a valuable asset for any maintenance or construction team.
Key Features
✓Tilt-back frame – allows the AWP-25S to roll through standard doorways.
✓Quick setup – minimizes downtime and maximizes productivity.
✓Robust aluminum construction – provides durability and long-term reliability.
✓Narrow base – enables access to confined spaces.
✓Stable platform – ensures operator safety and comfort.
✓Auxiliary platform option – expands the working area.
✓Integrated ground fault interrupter (GFI) – protects against electrical hazards.
✓Multiple base configurations – caters to diverse job site requirements.
Technical Specifications
Lifting Capacity
136 kg
Maximum Height
7.62 m
Platform Size
0.66 m x 0.66 m
Machine Weight
363 kg
Power Source
110V AC or 220V AC
Stowed Height
2.13 m
Stowed Length
1.35 m
Stowed Width
0.74 m
Lift Speed
25 seconds
Travel Speed
Push-around
Controls
Platform and base controls
Drive System
Manual Push
Genie AWP-30S
The Genie AWP-30S is a robust and reliable aerial work platform designed for demanding applications that require significant reach. It’s perfect for tasks such as overhead installations, high-bay lighting maintenance, and structural repairs. This model features a sturdy construction and a wide base for enhanced stability, ensuring operator safety at elevated heights. Its ease of transport and setup make it an efficient solution for various industrial and commercial settings.
Key Features
✓Tilt-back frame – allows passage through standard doorways.
✓Fast setup – reduces preparation time and boosts efficiency.
✓Heavy-duty aluminum construction – ensures durability in tough environments.
✓Solid platform – offers a secure and comfortable workspace.
✓Optional platform extension – increases the working area.
✓Ground fault circuit interrupter (GFCI) – protects against electrical shocks.
✓Variety of base options – adapts to different floor surfaces.
Technical Specifications
Lifting Capacity
136 kg
Maximum Height
9.14 m
Platform Size
0.66 m x 0.66 m
Machine Weight
408 kg
Power Source
110V AC or 220V AC
Stowed Height
2.29 m
Stowed Length
1.35 m
Stowed Width
0.74 m
Lift Speed
30 seconds
Travel Speed
Push-around
Controls
Platform and base controls
Drive System
Manual Push
Genie Runabout GR-12
The Genie Runabout GR-12 is a compact and lightweight self-propelled aerial work platform designed for indoor applications. It’s ideal for tasks such as stock picking, order fulfillment, and general maintenance in warehouses, retail stores, and offices. This model features a zero inside turning radius and a tight turning capability, allowing it to navigate narrow aisles and confined spaces with ease. Its intuitive controls and smooth operation contribute to enhanced productivity and operator comfort.
Key Features
✓Compact dimensions – allows access to tight spaces.
✓Tilt alarm – alerts operators to unsafe conditions.
✓On-board diagnostics – simplifies maintenance and troubleshooting.
✓Quiet electric operation – suitable for noise-sensitive environments.
Technical Specifications
Lifting Capacity
227 kg
Maximum Height
5.65 m
Platform Size
0.74 m x 1.12 m
Machine Weight
952 kg
Power Source
24V DC (Batteries)
Stowed Height
1.78 m
Stowed Length
1.37 m
Stowed Width
0.76 m
Lift Speed
23 seconds
Travel Speed
3.1 km/h
Controls
Proportional joystick
Drive System
Electric front-wheel drive
Genie Runabout GR-15
The Genie Runabout GR-15 is a versatile and efficient self-propelled aerial work platform designed for a wide range of indoor applications. It offers a higher working height than the GR-12, making it suitable for tasks such as inventory management, overhead repairs, and installation work in warehouses, distribution centers, and manufacturing facilities. This model features a compact design, intuitive controls, and smooth operation, ensuring enhanced productivity and operator comfort.
Key Features
✓Compact design – allows access to confined spaces.
✓Tilt alarm – alerts operators to unsafe conditions.
✓On-board diagnostics – simplifies maintenance and troubleshooting.
✓Quiet electric operation – suitable for noise-sensitive environments.
Technical Specifications
Lifting Capacity
227 kg
Maximum Height
6.57 m
Platform Size
0.74 m x 1.12 m
Machine Weight
971 kg
Power Source
24V DC (Batteries)
Stowed Height
1.98 m
Stowed Length
1.37 m
Stowed Width
0.76 m
Lift Speed
25 seconds
Travel Speed
3.1 km/h
Controls
Proportional joystick
Drive System
Electric front-wheel drive
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie AWP-20S
Genie AWP-25S
Genie AWP-30S
Genie Runabout GR-12
Genie Runabout GR-15
Lifting Capacity
136 kg
136 kg
136 kg
227 kg
227 kg
Maximum Height
6.10 m
7.62 m
9.14 m
5.65 m
6.57 m
Platform Size
0.66 m x 0.66 m
0.66 m x 0.66 m
0.66 m x 0.66 m
0.74 m x 1.12 m
0.74 m x 1.12 m
Machine Weight
324 kg
363 kg
408 kg
952 kg
971 kg
Stowed Height
1.98 m
2.13 m
2.29 m
1.78 m
1.98 m
Stowed Length
1.35 m
1.35 m
1.35 m
1.37 m
1.37 m
Stowed Width
0.74 m
0.74 m
0.74 m
0.76 m
0.76 m
Power Source
110V/220V AC
110V/220V AC
110V/220V AC
24V DC (Batteries)
24V DC (Batteries)
Lift Speed
20 seconds
25 seconds
30 seconds
23 seconds
25 seconds
Travel Speed
Push-around
Push-around
Push-around
3.1 km/h
3.1 km/h
Controls
Platform/Base
Platform/Base
Platform/Base
Proportional Joystick
Proportional Joystick
Best Application
General Maintenance
Electrical Work
Overhead Installations
Stock Picking
Inventory Management
Frequently Asked Questions
What is the primary difference between Genie AWP models and Genie Runabout models?
The primary difference lies in their drive systems. Genie AWP models are push-around lifts, meaning they require manual effort to move them between locations. Genie Runabout models, on the other hand, are self-propelled, allowing for easy maneuverability and increased efficiency, especially in larger spaces.
What safety features are standard on Genie aerial work platforms?
Genie aerial work platforms come equipped with several safety features, including tilt alarms, ground fault interrupters (GFCI), and automatic pothole protection (on self-propelled models). These features are designed to protect operators and ensure safe operation in various work environments.
What type of maintenance is required for Genie aerial work platforms?
Regular maintenance is essential for ensuring the safe and reliable operation of Genie aerial work platforms. This includes inspecting and maintaining batteries (for electric models), checking hydraulic fluids, lubricating moving parts, and inspecting tires. Following the manufacturer’s recommended maintenance schedule is crucial.
What are the key considerations when choosing an aerial work platform?
When selecting an aerial work platform, key considerations include the maximum working height required, the lifting capacity needed, the available workspace, and the type of terrain. It’s also important to consider the power source (electric or manual), the maneuverability required, and any specific safety features needed for the application.
Can Genie aerial work platforms be used outdoors?
While Genie AWPs are primarily designed for indoor use on flat surfaces, some models can be used outdoors in certain conditions. It’s important to check the manufacturer’s specifications and guidelines to ensure the chosen model is suitable for outdoor use and that proper safety precautions are taken.

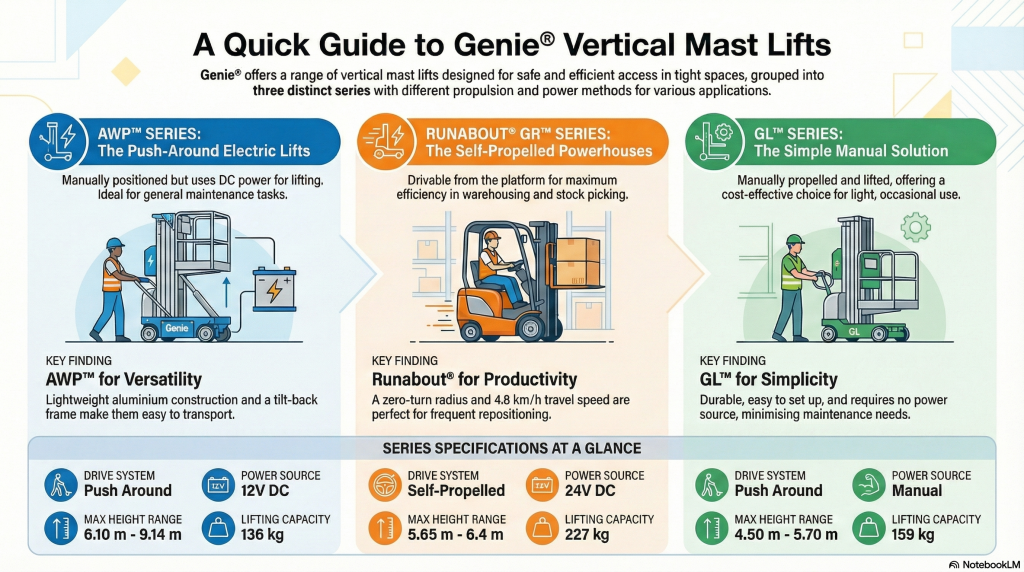

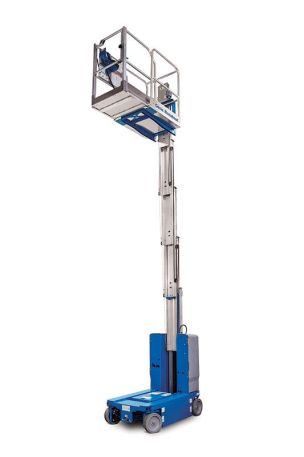

Genie Vertical Mast Lift Range
Vertical mast lifts are a type of aerial work platform renowned for their compact design and ability to navigate tight spaces. These machines excel in providing safe and efficient vertical access for a variety of indoor and outdoor applications. Their narrow footprint and precise maneuverability make them ideal for tasks in warehouses, retail environments, and other confined areas where larger equipment would struggle.
The benefits of using vertical mast lifts are numerous. They offer improved safety compared to ladders or scaffolding, increased productivity due to their ease of use and quick setup, and reduced labor costs. These lifts are commonly used for inventory management, maintenance tasks, installation work, and cleaning operations, proving to be versatile assets across diverse industries. Their environmental friendliness, often powered by electric motors, makes them suitable for indoor use.
The Genie range offers a variety of models to suit different needs and budgets. This section provides a detailed overview of the Genie vertical mast lift range, highlighting its key features, specifications, and applications.
Genie AWP™-20S
The Genie AWP™-20S is a lightweight, push-around aerial work platform designed for one-person operation. It’s ideal for a wide range of applications, including stock picking, general maintenance, and light construction work. Its compact design allows it to fit through standard doorways and navigate congested areas with ease. The AWP™-20S is known for its simple operation, making it a user-friendly option for various tasks that require reaching elevated heights safely and efficiently.
Key Features
✓Easy to maneuver and set up – Simplifies operation and increases productivity.
✓Durable aluminum construction – Provides strength and reliability while maintaining a lightweight design.
✓Tilt-back frame – Allows the unit to be easily loaded into a pickup truck.
✓Standard base – Offers stability and maneuverability on flat surfaces.
✓Auxiliary platform lowering – Provides a backup lowering system in case of power failure.
✓Tie down attachment points – Ensures secure transport of the unit.
✓Small footprint – Allows access to confined spaces.
Technical Specifications
Lifting Capacity
136 kg
Maximum Height
6.10 m
Platform Size
0.66 m x 0.61 m
Machine Weight
336 kg
Power Source
12V DC
Stowed Height
1.98 m
Stowed Length
1.37 m
Stowed Width
0.74 m
Lift Speed
0.28 m/s
Travel Speed
Push Around
Controls
Platform and Base Controls
Drive System
Manual
Genie AWP™-25S
The Genie AWP™-25S is a versatile aerial work platform designed for a single operator, extending the capabilities of the AWP™ series with a higher working height. This model maintains the series’ lightweight and easy-to-maneuver characteristics, making it suitable for various indoor applications like retail, warehousing, and maintenance. Its robust construction ensures durability, while its user-friendly controls promote efficient and safe operation at elevated levels.
Key Features
✓Lightweight and compact design – Enables easy transport and maneuverability in tight spaces.
✓Durable aluminum mast – Provides stability and strength for safe operation at height.
✓Easy to set up and operate – Minimizes training time and maximizes productivity.
✓Tilt-back frame option – Facilitates loading and unloading from vehicles.
✓Multiple base options – Adapts to different floor surfaces and working conditions.
✓Auxiliary platform lowering – Ensures safe descent in case of power loss.
✓Tie-down attachment points – Secure the unit during transportation.
✓Non-marking casters – Protect floors from damage.
Technical Specifications
Lifting Capacity
136 kg
Maximum Height
7.62 m
Platform Size
0.66 m x 0.61 m
Machine Weight
365 kg
Power Source
12V DC
Stowed Height
2.13 m
Stowed Length
1.37 m
Stowed Width
0.74 m
Lift Speed
0.28 m/s
Travel Speed
Push Around
Controls
Platform and Base Controls
Drive System
Manual
Genie AWP™-30S
The Genie AWP™-30S is the highest reaching model in the AWP™ series, offering an extended vertical reach while maintaining the series’ core benefits of lightweight design and ease of use. Designed for single-person operation, this push-around lift is ideal for applications requiring access to higher areas, such as high-bay warehousing, installation work in tall buildings, and maintenance tasks in large industrial facilities. Its compact footprint and maneuverability make it a practical solution for navigating confined spaces even at greater heights.
Key Features
✓Maximum reach within the AWP™ series – Provides access to higher work areas.
✓Lightweight aluminum construction – Ensures easy transport and maneuverability.
✓Simple and intuitive controls – Reduces training time and enhances operator efficiency.
✓Tilt-back frame (optional) – Simplifies loading and unloading for transport.
✓Multiple base options available – Adaptable to various floor conditions and job site requirements.
✓Auxiliary platform lowering system – Guarantees safe descent in emergency situations.
✓Tie-down points for secure transport – Prevents movement during transit.
The Genie Runabout® GR™-12 is a self-propelled vertical mast lift designed for increased productivity and maneuverability. It offers a compact footprint and zero inside turning radius, making it ideal for navigating tight spaces in warehouses, retail environments, and other indoor settings. The GR™-12 provides a comfortable working platform and precise control, allowing operators to perform tasks efficiently and safely. It is a popular choice for applications requiring frequent movement and precise positioning.
Key Features
✓Self-propelled drive – Allows for easy movement and positioning.
✓Compact footprint – Enables access to confined areas.
✓Proportional lift and drive controls – Offer precise control and smooth operation.
✓AC power to platform – Allows operators to use power tools at height.
✓Tilt alarm – Alerts operators to unsafe working conditions.
✓Descent alarm – Audible warning during lowering.
✓On-board diagnostics – Simplifies maintenance and troubleshooting.
Technical Specifications
Lifting Capacity
227 kg
Maximum Height
5.65 m
Platform Size
0.76 m x 1.12 m
Machine Weight
898 kg
Power Source
24V DC
Stowed Height
1.98 m
Stowed Length
1.37 m
Stowed Width
0.76 m
Lift Speed
0.25 m/s
Travel Speed
4.8 km/h
Controls
Platform Controls
Drive System
Electric
Genie Runabout® GR™-15
The Genie Runabout® GR™-15 is a self-propelled vertical mast lift that builds upon the GR™-12, offering a greater working height for applications requiring access to higher areas. This model maintains the same compact footprint and excellent maneuverability as the GR™-12, making it suitable for navigating tight spaces while providing extended reach. The GR™-15 is ideal for tasks such as stock picking, maintenance, and installation work in warehouses, retail stores, and other indoor environments where space is limited.
Key Features
✓Increased working height compared to the GR™-12 – Allows access to higher areas.
✓Self-propelled drive system – Provides easy and efficient movement.
✓Compact design – Enables operation in confined spaces.
✓Proportional lift and drive controls – Ensure precise control and smooth operation.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and descent alarm – Enhance operator safety.
✓On-board diagnostics – Facilitates easy maintenance and troubleshooting.
Technical Specifications
Lifting Capacity
227 kg
Maximum Height
6.4 m
Platform Size
0.76 m x 1.12 m
Machine Weight
948 kg
Power Source
24V DC
Stowed Height
1.98 m
Stowed Length
1.37 m
Stowed Width
0.76 m
Lift Speed
0.25 m/s
Travel Speed
4.8 km/h
Controls
Platform Controls
Drive System
Electric
Genie GL™-8
The Genie GL™-8 is a manually propelled, lightweight aerial lift designed for various indoor applications. It offers a compact footprint and easy maneuverability, making it suitable for maintenance, installation, and stock-picking tasks in tight spaces. Its straightforward operation and durable construction make it a cost-effective and reliable solution for accessing elevated work areas safely. The GL™-8’s simplicity and ease of transport make it a valuable asset for facilities requiring occasional access to heights.
Key Features
✓Lightweight and compact design – Allows for easy transport and maneuverability.
✓Manual propulsion – Simple and cost-effective operation.
✓Easy to set up and operate – Minimizes training requirements.
✓Durable construction – Ensures long-lasting performance.
✓Suitable for various indoor applications – Versatile for different tasks.
✓Non-marking casters – Protect floors from damage.
The Genie GL™-10 is a manually propelled aerial lift similar to the GL™-8, but offering increased working height. This lift maintains the series’ characteristics of lightweight design, easy maneuverability, and simple operation. The GL™-10 is well-suited for indoor applications where access to higher areas is needed, such as maintenance, installation, and stock-picking tasks in warehouses, retail environments, and other commercial spaces. Its robust construction and user-friendly design make it a reliable and cost-effective solution for accessing elevated work areas.
Key Features
✓Increased working height – Provides access to higher areas.
✓Lightweight and compact design – Allows for easy transport and maneuverability.
✓Manual propulsion – Simple and cost-effective operation.
✓Easy to set up and operate – Minimizes training requirements.
✓Durable construction – Ensures long-lasting performance.
✓Suitable for various indoor applications – Versatile for different tasks.
✓Non-marking casters – Protect floors from damage.
Technical Specifications
Lifting Capacity
159 kg
Maximum Height
5.10 m
Platform Size
0.66 m x 0.61 m
Machine Weight
322 kg
Power Source
Manual
Stowed Height
1.88 m
Stowed Length
1.22 m
Stowed Width
0.74 m
Lift Speed
Manual
Travel Speed
Push Around
Controls
Manual
Drive System
Manual
Genie GL™-12
The Genie GL™-12 represents the tallest model in the GL™ series, offering the highest reach while maintaining the series’ key features of manual propulsion, lightweight design, and ease of use. This lift is ideal for indoor applications requiring access to the highest areas, such as maintenance, installation, and stock-picking tasks in high-bay warehouses, industrial facilities, and other commercial spaces. Its robust construction, simple operation, and non-marking casters make it a reliable and floor-friendly solution for accessing elevated work areas.
Key Features
✓Maximum working height in the GL™ series – Provides access to the highest areas.
✓Lightweight and compact design – Allows for easy transport and maneuverability.
✓Manual propulsion – Simple and cost-effective operation.
✓Easy to set up and operate – Minimizes training requirements.
✓Durable construction – Ensures long-lasting performance.
✓Suitable for various indoor applications – Versatile for different tasks.
✓Non-marking casters – Protect floors from damage.
Technical Specifications
Lifting Capacity
159 kg
Maximum Height
5.70 m
Platform Size
0.66 m x 0.61 m
Machine Weight
331 kg
Power Source
Manual
Stowed Height
1.98 m
Stowed Length
1.22 m
Stowed Width
0.74 m
Lift Speed
Manual
Travel Speed
Push Around
Controls
Manual
Drive System
Manual
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie AWP™-20S
Genie AWP™-25S
Genie AWP™-30S
Genie Runabout® GR™-12
Genie Runabout® GR™-15
Genie GL™-8
Genie GL™-10
Genie GL™-12
Lifting Capacity
136 kg
136 kg
136 kg
227 kg
227 kg
159 kg
159 kg
159 kg
Maximum Height
6.10 m
7.62 m
9.14 m
5.65 m
6.4 m
4.50 m
5.10 m
5.70 m
Platform Size
0.66 m x 0.61 m
0.66 m x 0.61 m
0.66 m x 0.61 m
0.76 m x 1.12 m
0.76 m x 1.12 m
0.66 m x 0.61 m
0.66 m x 0.61 m
0.66 m x 0.61 m
Machine Weight
336 kg
365 kg
399 kg
898 kg
948 kg
313 kg
322 kg
331 kg
Stowed Height
1.98 m
2.13 m
2.29 m
1.98 m
1.98 m
1.78 m
1.88 m
1.98 m
Stowed Length
1.37 m
1.37 m
1.37 m
1.37 m
1.37 m
1.22 m
1.22 m
1.22 m
Stowed Width
0.74 m
0.74 m
0.74 m
0.76 m
0.76 m
0.74 m
0.74 m
0.74 m
Power Source
12V DC
12V DC
12V DC
24V DC
24V DC
Manual
Manual
Manual
Lift Speed
0.28 m/s
0.28 m/s
0.28 m/s
0.25 m/s
0.25 m/s
Manual
Manual
Manual
Travel Speed
Push Around
Push Around
Push Around
4.8 km/h
4.8 km/h
Push Around
Push Around
Push Around
Controls
Platform and Base Controls
Platform and Base Controls
Platform and Base Controls
Platform Controls
Platform Controls
Manual
Manual
Manual
Best Application
General Maintenance
General Maintenance at Height
High-Reach Maintenance
Stock Picking
Stock Picking at Height
Light Duty Maintenance
Medium Duty Maintenance
Heavy Duty Maintenance
Frequently Asked Questions
What is the primary difference between the Genie AWP™ series and the Genie Runabout® GR™ series?
The primary difference lies in their drive systems. The AWP™ series are push-around lifts, requiring manual effort to move them, while the Runabout® GR™ series is self-propelled, allowing for easier and more efficient movement around the workspace. This difference impacts maneuverability and suitability for tasks requiring frequent repositioning.
What safety features are standard on Genie vertical mast lifts?
Genie vertical mast lifts are equipped with several safety features, including tilt alarms, descent alarms (on some models), auxiliary platform lowering systems, and tie-down attachment points for secure transport. These features are designed to protect operators and ensure safe operation in various working conditions.
Are Genie vertical mast lifts suitable for outdoor use?
While some Genie vertical mast lifts can be used outdoors on firm, level surfaces, they are primarily designed for indoor use. Factors like wind conditions and uneven terrain can affect their stability and safety. Always consult the manufacturer’s guidelines and assess the environment before using a vertical mast lift outdoors.
What maintenance is required for Genie vertical mast lifts?
Regular maintenance is essential for ensuring the safe and reliable operation of Genie vertical mast lifts. This includes inspecting the machine for any damage, checking fluid levels, lubricating moving parts, and testing the functionality of all controls and safety features. Following the manufacturer’s recommended maintenance schedule is crucial.
What are the power options for Genie vertical mast lifts?
Genie vertical mast lifts offer different power options depending on the model. The AWP™ and Runabout® series typically use 12V or 24V DC battery power, providing quiet and emission-free operation for indoor use. The GL™ series is manually propelled and does not require a power source.

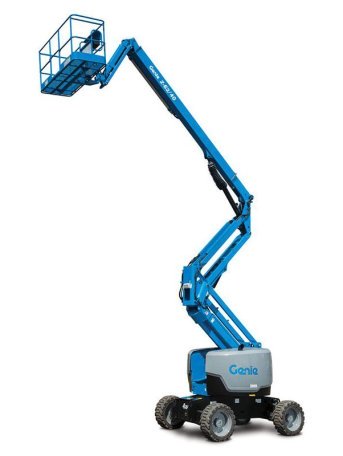

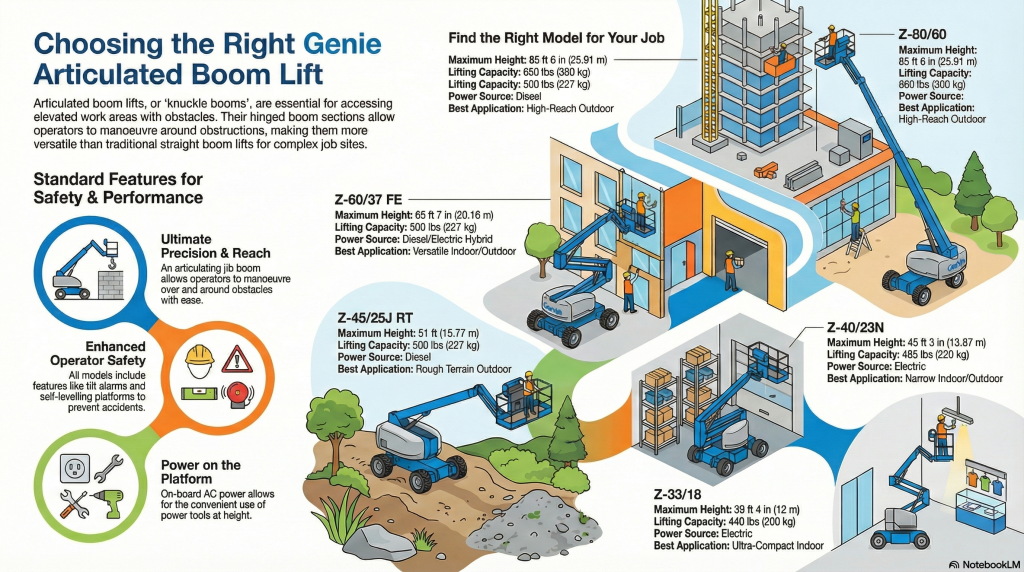

Genie Articulated Boom Lifts
Articulated boom lifts, also known as knuckle booms, are aerial work platforms designed to provide maximum reach and versatility in accessing elevated work areas. These machines feature multiple boom sections that articulate or hinge, allowing operators to navigate around obstacles and reach tight spaces that traditional straight boom lifts cannot access. Their unique design makes them indispensable tools for a wide range of industries and applications.
The benefits of articulated boom lifts are numerous. They offer exceptional maneuverability, allowing for precise positioning and access in complex environments. Their ability to reach over and around obstacles makes them ideal for tasks such as maintenance, construction, and installation in areas with limited access. Furthermore, they enhance safety by providing a stable and secure platform for workers at height, reducing the risk of falls and accidents.
Genie’s articulated boom lifts are engineered to meet the demands of various industries, offering a diverse range of models with different reach heights, lifting capacities, and power options. This section provides a comprehensive overview of the Genie articulated boom lift range, exploring the features and specifications of each model.
Genie Z-45/25J RT
The Genie Z-45/25J RT is a popular rough terrain articulated boom lift known for its versatility and reliability. It is designed to provide excellent reach and maneuverability in outdoor environments. This model is ideal for construction sites, maintenance projects, and other applications where access to elevated areas is challenging due to uneven terrain or obstacles. Its articulating jib allows for precise positioning and access to hard-to-reach areas.
Key Features
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
51 ft (15.77 m)
Platform Size
30 x 48 in (0.76 x 1.22 m)
Machine Weight
13,600 lbs (6,169 kg)
Power Source
Diesel
Stowed Height
6 ft 11 in (2.11 m)
Stowed Length
22 ft 10 in (6.96 m)
Stowed Width
5 ft 9 in (1.75 m)
Lift Speed
45 seconds
Travel Speed
4.8 km/h
Controls
Proportional
Drive System
4WD
Genie Z-60/37 FE
The Genie Z-60/37 FE is a fuel-electric hybrid articulated boom lift that combines the benefits of both electric and diesel power. This model is designed for indoor and outdoor use, offering quiet and emission-free operation in sensitive environments, as well as the power and performance needed for demanding outdoor applications. Its articulating jib and extended reach make it suitable for a wide range of tasks, including maintenance, construction, and installation.
Key Features
✓Fuel-electric hybrid system – Offers both electric and diesel power options.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
Technical Specifications
Lifting Capacity
500 lbs (227 kg)
Maximum Height
65 ft 7 in (20.16 m)
Platform Size
30 x 48 in (0.76 x 1.22 m)
Machine Weight
16,700 lbs (7,575 kg)
Power Source
Diesel/Electric Hybrid
Stowed Height
8 ft 2 in (2.49 m)
Stowed Length
26 ft 10 in (8.18 m)
Stowed Width
8 ft 1 in (2.46 m)
Lift Speed
60 seconds
Travel Speed
4.8 km/h
Controls
Proportional
Drive System
4WD
Genie Z-80/60
The Genie Z-80/60 is a high-reach articulated boom lift designed for demanding applications that require maximum height and outreach. This model offers exceptional performance and versatility, making it suitable for construction, maintenance, and installation projects in challenging environments. Its articulating jib and extended reach allow operators to access hard-to-reach areas with ease.
Key Features
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
✓XChassis system – Retracts to a narrow profile for transport and extends for stability.
Technical Specifications
Lifting Capacity
660 lbs (300 kg)
Maximum Height
85 ft 6 in (25.91 m)
Platform Size
36 x 96 in (0.91 x 2.44 m)
Machine Weight
35,700 lbs (16,193 kg)
Power Source
Diesel
Stowed Height
9 ft 10 in (3 m)
Stowed Length
39 ft 4 in (12 m)
Stowed Width
8 ft 2 in (2.49 m)
Lift Speed
70 seconds
Travel Speed
4.8 km/h
Controls
Proportional
Drive System
4WD
Genie Z-40/23N
The Genie Z-40/23N is a narrow electric articulated boom lift designed for indoor and outdoor applications where space is limited. Its compact dimensions and zero tailswing make it ideal for maneuvering in tight spaces, such as warehouses, factories, and retail environments. The articulating jib and precise controls allow operators to access hard-to-reach areas with ease.
Key Features
✓Narrow chassis – Allows access to confined spaces.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Zero tailswing – Minimizes the risk of collisions in tight environments.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Non-marking tires – Prevents damage to floors in indoor environments.
✓AC power to platform – Allows the use of power tools at height.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
Technical Specifications
Lifting Capacity
485 lbs (220 kg)
Maximum Height
45 ft 3 in (13.87 m)
Platform Size
30 x 48 in (0.76 x 1.22 m)
Machine Weight
10,300 lbs (4,672 kg)
Power Source
Electric
Stowed Height
6 ft 7 in (2.01 m)
Stowed Length
19 ft 8 in (5.99 m)
Stowed Width
4 ft 11 in (1.5 m)
Lift Speed
50 seconds
Travel Speed
4.8 km/h
Controls
Proportional
Drive System
2WD
Genie Z-33/18
The Genie Z-33/18 is an ultra-compact electric articulated boom lift designed for indoor applications where space is extremely limited. Its lightweight design and non-marking tires make it ideal for use on sensitive floors, while its articulating jib and precise controls allow operators to access hard-to-reach areas with ease. This model is perfect for maintenance, installation, and cleaning tasks in retail environments, offices, and other confined spaces.
Key Features
✓Ultra-compact design – Allows access to extremely confined spaces.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Lightweight design – Minimizes floor load and allows for easy transport.
✓Non-marking tires – Prevents damage to floors in indoor environments.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓AC power to platform – Allows the use of power tools at height.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
Technical Specifications
Lifting Capacity
440 lbs (200 kg)
Maximum Height
39 ft 4 in (12 m)
Platform Size
24 x 47 in (0.61 x 1.19 m)
Machine Weight
7,700 lbs (3,493 kg)
Power Source
Electric
Stowed Height
6 ft 7 in (2 m)
Stowed Length
14 ft 5 in (4.39 m)
Stowed Width
3 ft 11 in (1.19 m)
Lift Speed
40 seconds
Travel Speed
4.8 km/h
Controls
Proportional
Drive System
2WD
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie Z-45/25J RT
Genie Z-60/37 FE
Genie Z-80/60
Genie Z-40/23N
Genie Z-33/18
Lifting Capacity
500 lbs (227 kg)
500 lbs (227 kg)
660 lbs (300 kg)
485 lbs (220 kg)
440 lbs (200 kg)
Maximum Height
51 ft (15.77 m)
65 ft 7 in (20.16 m)
85 ft 6 in (25.91 m)
45 ft 3 in (13.87 m)
39 ft 4 in (12 m)
Platform Size
30 x 48 in (0.76 x 1.22 m)
30 x 48 in (0.76 x 1.22 m)
36 x 96 in (0.91 x 2.44 m)
30 x 48 in (0.76 x 1.22 m)
24 x 47 in (0.61 x 1.19 m)
Machine Weight
13,600 lbs (6,169 kg)
16,700 lbs (7,575 kg)
35,700 lbs (16,193 kg)
10,300 lbs (4,672 kg)
7,700 lbs (3,493 kg)
Stowed Height
6 ft 11 in (2.11 m)
8 ft 2 in (2.49 m)
9 ft 10 in (3 m)
6 ft 7 in (2.01 m)
6 ft 7 in (2 m)
Stowed Length
22 ft 10 in (6.96 m)
26 ft 10 in (8.18 m)
39 ft 4 in (12 m)
19 ft 8 in (5.99 m)
14 ft 5 in (4.39 m)
Stowed Width
5 ft 9 in (1.75 m)
8 ft 1 in (2.46 m)
8 ft 2 in (2.49 m)
4 ft 11 in (1.5 m)
3 ft 11 in (1.19 m)
Power Source
Diesel
Diesel/Electric Hybrid
Diesel
Electric
Electric
Lift Speed
45 seconds
60 seconds
70 seconds
50 seconds
40 seconds
Travel Speed
4.8 km/h
4.8 km/h
4.8 km/h
4.8 km/h
4.8 km/h
Controls
Proportional
Proportional
Proportional
Proportional
Proportional
Best Application
Rough Terrain Outdoor
Versatile Indoor/Outdoor
High Reach Outdoor
Narrow Indoor/Outdoor
Ultra-Compact Indoor
Frequently Asked Questions
What is the primary advantage of an articulated boom lift over a telescopic boom lift?
Articulated boom lifts excel in maneuvering around obstacles and accessing tight spaces due to their multiple hinged boom sections. This allows them to reach areas that a telescopic boom lift, which extends in a straight line, simply cannot access. This makes them ideal for complex environments with obstructions.
What safety features are standard on Genie articulated boom lifts?
Genie articulated boom lifts come equipped with a range of safety features, including tilt alarms, drive cut-outs, self-leveling platforms, and proportional controls for smooth operation. These features are designed to enhance operator safety and prevent accidents while working at height.
What is the difference between a rough terrain and an electric articulated boom lift?
Rough terrain articulated boom lifts are typically powered by diesel engines and equipped with rugged tires and four-wheel drive for superior traction on uneven surfaces. Electric articulated boom lifts are powered by batteries and designed for indoor use, offering quiet and emission-free operation.
What factors should I consider when choosing an articulated boom lift for my project?
When selecting an articulated boom lift, consider the maximum height and reach required, the lifting capacity needed, the terrain conditions, and any space limitations. Also, consider the power source (electric, diesel, or hybrid) that best suits your application and environmental requirements.
How often should an articulated boom lift be serviced?
Regular maintenance is crucial for ensuring the safe and reliable operation of an articulated boom lift. The service schedule will vary depending on the specific model and usage, but it is generally recommended to perform routine inspections and maintenance at least every three months or 150 hours of operation, whichever comes first. Consult the manufacturer’s guidelines for detailed maintenance recommendations.
Can articulated boom lifts be used indoors?
Yes, certain models of articulated boom lifts, particularly those powered by electricity, are specifically designed for indoor use. These models typically feature non-marking tires to protect floors and offer quiet, emission-free operation, making them suitable for warehouses, factories, and retail environments.

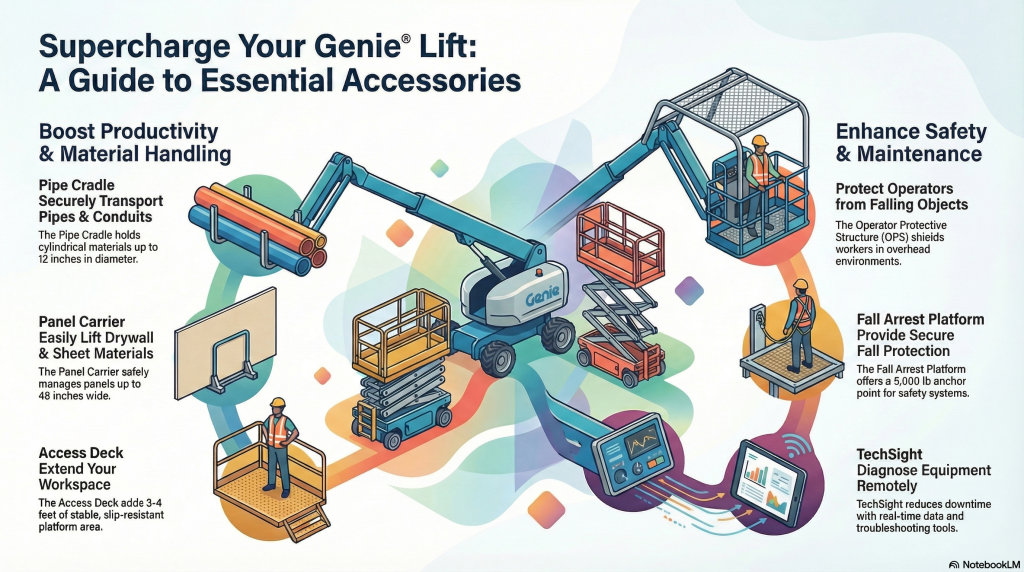

Genie boom and scissor lift accessories
Genie boom and scissor lift accessories enhance the versatility, safety, and efficiency of aerial work platforms. These accessories are designed to adapt the machines to various job site requirements, enabling operators to perform tasks more effectively and safely. From pipe racks and panel carriers to platform extensions and fall arrest systems, Genie offers a wide range of accessories to optimize the performance of its lifts.
The benefits of using Genie accessories are numerous. They improve productivity by allowing operators to carry more materials, extend their reach, and work in confined spaces. Safety is also enhanced through features like fall arrest systems and pipe cradles, which minimize the risk of accidents. Furthermore, accessories can customize the equipment to specific tasks, reducing the need for multiple machines on a job site. This saves time and resources while maximizing the return on investment.
Genie’s accessories are engineered to the same high standards as their lifts, ensuring durability and compatibility. Angus Lift Trucks offers a comprehensive selection of Genie accessories, providing customers with the right tools to enhance their aerial work platform operations. With Angus Lift Trucks’ expertise and Genie’s quality, customers can find the perfect solutions for their specific needs.
Genie Lift Tools Pipe Cradle
The Genie Lift Tools Pipe Cradle is designed to securely hold pipes, conduits, and other cylindrical materials during aerial work. This accessory increases efficiency and safety by allowing operators to lift and position materials without the need for manual handling. It’s perfect for construction, plumbing, electrical, and HVAC applications where pipes need to be installed or maintained at height. The cradle is easy to install and provides a stable platform for transporting materials.
Key Features
✓Secure pipe holding – Prevents materials from shifting during transport.
✓Adjustable straps – Accommodates various pipe sizes.
✓Easy installation – Attaches quickly to the platform railing.
✓Durable construction – Built to withstand heavy use.
✓Increases efficiency – Reduces the need for manual handling.
✓Enhances safety – Minimizes the risk of dropped materials.
✓Versatile application – Suitable for various pipe types and sizes.
Technical Specifications
Maximum Pipe Diameter
12 inches
Weight Capacity
200 lbs
Material
Steel with rubber lining
Installation Time
Approximately 15 minutes
Weight
Approximately 15 lbs
Dimensions
18″ x 12″ x 6″
Strap Material
Heavy-duty nylon
Operating Temperature
-20°C to 50°C
Compatibility
Various Genie Boom and Scissor Lifts
Certifications
ANSI, CSA
Adjustability
Adjustable straps for different pipe sizes
Finish
Powder-coated for corrosion resistance
Genie Lift Tools Panel Carrier
The Genie Lift Tools Panel Carrier is designed to safely and efficiently lift and position panels, drywall, and other sheet materials. This accessory streamlines the installation process, reducing labor costs and improving safety. It’s ideal for construction, renovation, and installation projects where large panels need to be handled at height. The panel carrier provides a secure grip and allows operators to easily maneuver materials into place.
Key Features
✓Secure panel grip – Prevents panels from slipping during transport.
✓Adjustable width – Accommodates various panel sizes.
✓Easy installation – Attaches quickly to the platform railing.
✓Durable construction – Built to withstand heavy use.
✓Increases efficiency – Reduces the need for manual handling.
✓Enhances safety – Minimizes the risk of dropped materials.
✓Versatile application – Suitable for various panel types and sizes.
Technical Specifications
Maximum Panel Width
48 inches
Weight Capacity
250 lbs
Material
Steel with rubber lining
Installation Time
Approximately 15 minutes
Weight
Approximately 20 lbs
Dimensions
50″ x 10″ x 8″
Grip Material
High-friction rubber
Operating Temperature
-20°C to 50°C
Compatibility
Various Genie Boom and Scissor Lifts
Certifications
ANSI, CSA
Adjustability
Adjustable width for different panel sizes
Finish
Powder-coated for corrosion resistance
Genie TechSight
Genie TechSight is a remote diagnostics tool that allows technicians to remotely diagnose and troubleshoot Genie equipment. This accessory reduces downtime and maintenance costs by enabling faster and more accurate diagnoses. It’s ideal for rental companies, service providers, and equipment owners who want to minimize disruptions and keep their machines running smoothly. TechSight provides real-time data and diagnostic information, allowing technicians to quickly identify and resolve issues.
Key Features
✓Remote diagnostics – Allows technicians to diagnose equipment remotely.
✓Real-time data – Provides access to real-time machine data.
✓Troubleshooting tools – Includes tools for identifying and resolving issues.
✓Reduced downtime – Minimizes equipment downtime.
✓Improved maintenance – Enables faster and more accurate maintenance.
✓Increased efficiency – Reduces the need for on-site visits.
✓Historical data – Provides access to historical machine data.
✓User-friendly interface – Easy to use and navigate.
Technical Specifications
Connectivity
Cellular, Wi-Fi
Data Storage
Cloud-based
Operating System
Web-based
Security
Encrypted data transmission
Compatibility
Various Genie Boom and Scissor Lifts
Subscription
Requires a subscription
Reporting
Generates detailed reports
Alerts
Sends alerts for critical issues
User Access
Multiple user access levels
Remote Control
Limited remote control capabilities
Language Support
Multiple languages supported
Updates
Automatic software updates
Genie Operator Protective Structure (OPS)
The Genie Operator Protective Structure (OPS) is designed to provide additional operator protection in overhead environments. This accessory is a robust structure that surrounds the operator, protecting them from falling objects and other hazards. It’s ideal for construction sites, demolition projects, and any environment where there is a risk of overhead debris. The OPS enhances safety and provides operators with peace of mind while working at height.
Key Features
✓Overhead protection – Protects operators from falling objects.
✓Durable construction – Built to withstand heavy impacts.
✓Easy installation – Attaches quickly to the platform.
✓Open design – Provides good visibility.
✓Enhances safety – Reduces the risk of injury.
✓Complies with safety standards – Meets or exceeds industry safety requirements.
The Genie Fall Arrest Platform provides a secure anchor point for personal fall arrest systems, allowing operators to move freely within the platform while remaining safely tethered. This accessory enhances safety and allows operators to work more comfortably and efficiently. It’s ideal for any application where operators need to move around the platform while working at height. The fall arrest platform provides a reliable and convenient solution for fall protection.
Key Features
✓Secure anchor point – Provides a reliable anchor for fall arrest systems.
✓Easy installation – Attaches quickly to the platform.
✓Durable construction – Built to withstand heavy use.
✓Allows free movement – Enables operators to move freely within the platform.
✓Enhances safety – Reduces the risk of falls.
✓Complies with safety standards – Meets or exceeds industry safety requirements.
✓Versatile application – Suitable for various work environments.
Technical Specifications
Anchor Point Capacity
5,000 lbs
Material
High-strength steel
Weight
Approximately 50 lbs
Dimensions
36″ x 36″ x 12″
Installation Time
Approximately 15 minutes
Finish
Powder-coated for corrosion resistance
Compatibility
Various Genie Boom and Scissor Lifts
Certifications
ANSI, CSA
User Capacity
One person
Lanyard Compatibility
Compatible with standard lanyards
Inspection Requirements
Regular inspection recommended
Safety Factor
Meets or exceeds safety factor requirements
Genie Lift Tools Access Deck
The Genie Lift Tools Access Deck is an accessory designed to provide operators with increased workspace and accessibility on boom lifts. It effectively extends the platform area, allowing for more comfortable and efficient work, especially in situations requiring multiple tools or materials. The Access Deck is particularly useful in maintenance, construction, and installation applications, offering a secure and stable extension to the existing platform.
Key Features
✓Increased workspace – Extends the platform area for more room.
✓Easy Installation – Quick and simple attachment to the boom lift.
✓Durable Construction – Built to withstand job site conditions.
✓Enhanced Stability – Provides a secure and stable work surface.
✓Improved Accessibility – Allows easier access to hard-to-reach areas.
✓Lightweight Design – Minimizes impact on lift capacity.
✓Versatile Application – Suitable for various tasks and industries.
✓Slip-Resistant Surface – Ensures safe footing for operators.
Technical Specifications
Platform Extension
Typically adds 3 – 4 feet to the platform length
Weight Capacity
250 lbs (113 kg)
Material
Steel with a slip-resistant coating
Installation Time
Approximately 15-20 minutes
Weight
Approximately 60 lbs (27 kg)
Dimensions
Varies by model, typically 48″ x 36″
Compatibility
Specific Genie boom lift models (check compatibility chart)
Certifications
Meets or exceeds ANSI and CSA standards
Surface Finish
Powder-coated for durability and corrosion resistance
Safety Railings
May include optional safety railings
Load Rating
Uniformly distributed load
Storage
Compact for easy storage when not in use
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Lift Guard Contact Alarm
Lift Tools Pipe Cradle
Lift Tools Panel Carrier
TechSight
Operator Protective Structure (OPS)
Fall Arrest Platform
Lift Tools Access Deck
Lifting Capacity
N/A
200 lbs
250 lbs
N/A
N/A
5000 lbs
250 lbs
Maximum Height
N/A
Dependent on Lift
Dependent on Lift
N/A
Dependent on Lift
Dependent on Lift
Dependent on Lift
Platform Size
N/A
18″ x 12″ x 6″
50″ x 10″ x 8″
N/A
48″ x 48″ x 72″
36″ x 36″ x 12″
48″ x 36″ (typical)
Machine Weight
5 lbs
15 lbs
20 lbs
N/A
100 lbs
50 lbs
60 lbs
Stowed Height
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Stowed Length
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Stowed Width
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Power Source
Lift Battery
N/A
N/A
Cellular/Wi-Fi
N/A
N/A
N/A
Lift Speed
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Travel Speed
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Controls
Pressure Sensitive
N/A
N/A
Web-based
N/A
N/A
N/A
Best Application
Operator Protection
Pipe Handling
Panel Handling
Remote Diagnostics
Overhead Protection
Fall Protection
Increased Workspace
Frequently Asked Questions
What is the purpose of Genie lift accessories?
Genie lift accessories are designed to enhance the functionality, safety, and efficiency of Genie boom and scissor lifts. They allow operators to perform a wider range of tasks, improve safety in various working conditions, and optimize the use of the equipment for specific job requirements. These accessories are essential for maximizing the versatility and productivity of Genie lifts.
How do I determine which accessories are compatible with my Genie lift?
Compatibility information is typically available in the Genie lift’s operator manual or on the Genie website. Angus Lift Trucks can also provide expert guidance on selecting the right accessories for your specific Genie lift model. It’s crucial to verify compatibility to ensure safe and effective operation of the accessories.
Are Genie lift accessories easy to install and remove?
Most Genie lift accessories are designed for easy installation and removal, often requiring minimal tools and time. However, it’s important to follow the manufacturer’s instructions carefully to ensure proper installation and avoid any damage to the equipment. Some accessories may require professional installation, depending on their complexity.
What safety precautions should I take when using Genie lift accessories?
Always follow the manufacturer’s instructions and safety guidelines provided with the accessories. Ensure that the accessories are properly installed and compatible with the lift. Conduct regular inspections to check for any damage or wear. Never exceed the weight capacity of the accessories or the lift. Use appropriate personal protective equipment (PPE) and be aware of the surrounding environment.
Can Genie TechSight remotely diagnose all issues with my Genie lift?
Genie TechSight can remotely diagnose a wide range of issues, but it may not be able to identify all possible problems. The system relies on data transmitted from the lift’s sensors and control systems. Physical damage or issues not detected by the sensors may require on-site inspection and diagnosis. However, TechSight can significantly reduce downtime by enabling faster and more accurate initial diagnoses.
Where can I purchase Genie boom and scissor lift accessories?
Genie boom and scissor lift accessories can be purchased from authorized Genie dealers like Angus Lift Trucks. Angus Lift Trucks offers a comprehensive selection of Genie accessories and provides expert support to help you choose the right products for your needs. Purchasing from an authorized dealer ensures that you receive genuine Genie accessories and reliable service.
Genie Xtra Capacity (XC) Range
Genie Xtra Capacity (XC) boom lifts are designed to enhance productivity and safety when working at height. These machines offer increased lift capacity and a dual-envelope control system, allowing operators to handle heavier loads and access a wider range of work areas. The XC range represents a significant advancement in aerial work platforms, addressing the growing demands of modern construction and maintenance projects.
The benefits of using Genie XC boom lifts are numerous. They include improved efficiency due to the ability to lift more materials, enhanced safety with features like load sense technology, and increased versatility thanks to their dual-envelope capabilities. These machines are ideal for applications such as structural steel erection, precast concrete installation, and general construction tasks where heavy materials need to be lifted to elevated positions.
Genie’s XC range is a testament to their commitment to providing solutions that meet the evolving needs of the industry. The Genie XC range offers robust solutions for demanding job sites, ensuring reliability and productivity. Angus Lift Trucks are experts in these machines and their capabilities.
Genie S-60 XC Boom Lift
The Genie S-60 XC boom lift is a popular model in the Xtra Capacity range, known for its versatility and robust design. It offers a maximum platform height of 60 ft (18.3 m) and a horizontal reach of 50 ft 10 in (15.49 m), making it suitable for a wide range of applications. The S-60 XC is designed to handle heavier loads, with a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted, allowing operators to lift more materials and tools.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted for increased productivity.
✓Automatic envelope control: Allows for precise positioning and reduces the need for repositioning.
✓Positive traction drive: Ensures reliable performance on challenging terrain.
✓Proportional boom and swing controls: Provide smooth and precise operation.
✓Rotating jib: Offers enhanced maneuverability and access to tight spaces.
✓Four-wheel drive: Provides excellent traction and mobility on various surfaces.
✓Oscillating axle: Helps maintain contact with the ground on uneven terrain.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 66 ft (20.12 m)
✓Platform Size: 8 ft (2.44 m)
✓Machine Weight: 17,200 lb (7,802 kg)
✓Power Source: Diesel
✓Dimensions: 26 ft 10 in (L) x 8 ft (W) x 8 ft 3 in (H)
Genie S-65 XC Boom Lift
The Genie S-65 XC boom lift is another powerful model in the Xtra Capacity range, offering a maximum platform height of 65 ft (19.81 m) and a horizontal reach of 56 ft (17.09 m). It shares the same dual lift capacity as the S-60 XC, with 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted. The S-65 XC is designed for jobs that require higher reach and greater horizontal extension, making it ideal for construction, maintenance, and industrial applications.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted.
✓Automatic envelope control: Ensures precise positioning and reduces repositioning.
✓Positive traction drive: Provides reliable performance on rough terrain.
✓Proportional boom and swing controls: Offer smooth and precise operation.
✓Rotating jib: Enhances maneuverability and access to confined spaces.
✓Four-wheel drive: Delivers excellent traction and mobility.
✓Oscillating axle: Maintains contact with the ground on uneven surfaces.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 71 ft (21.64 m)
✓Platform Size: 8 ft (2.44 m)
✓Machine Weight: 17,700 lb (8,029 kg)
✓Power Source: Diesel
✓Dimensions: 27 ft 10 in (L) x 8 ft (W) x 8 ft 3 in (H)
Genie S-80 XC Boom Lift
The Genie S-80 XC boom lift is designed for jobs that require significant reach and lifting capacity. With a maximum platform height of 80 ft (24.38 m) and a horizontal reach of 68 ft (20.83 m), this model is well-suited for large-scale construction projects, bridge maintenance, and other demanding applications. The S-80 XC offers the same dual lift capacity as other XC models, ensuring operators can lift heavy loads safely and efficiently.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted.
✓Automatic envelope control: Provides precise positioning and reduces the need for repositioning.
✓Positive traction drive: Ensures reliable performance on challenging terrain.
✓Proportional boom and swing controls: Offer smooth and precise operation.
✓Rotating jib: Enhances maneuverability and access to tight spaces.
✓Four-wheel drive: Provides excellent traction and mobility on various surfaces.
✓Oscillating axle: Helps maintain contact with the ground on uneven terrain.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 86 ft (26.21 m)
✓Platform Size: 8 ft (2.44 m)
✓Machine Weight: 24,200 lb (10,977 kg)
✓Power Source: Diesel
✓Dimensions: 34 ft 2 in (L) x 8 ft 2 in (W) x 8 ft 10 in (H)
Genie S-85 XC Boom Lift
The Genie S-85 XC boom lift is the largest model in the Xtra Capacity range, offering a maximum platform height of 85 ft (25.91 m) and a horizontal reach of 72 ft 6 in (22.1 m). This machine is designed for the most demanding applications, such as high-rise construction, wind turbine maintenance, and large-scale infrastructure projects. The S-85 XC’s robust design and high lifting capacity make it a reliable and efficient choice for jobs that require maximum reach and power.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted.
✓Automatic envelope control: Ensures precise positioning and reduces repositioning.
✓Positive traction drive: Provides reliable performance on rough terrain.
✓Proportional boom and swing controls: Offer smooth and precise operation.
✓Rotating jib: Enhances maneuverability and access to confined spaces.
✓Four-wheel drive: Delivers excellent traction and mobility.
✓Oscillating axle: Maintains contact with the ground on uneven surfaces.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 91 ft (27.74 m)
✓Platform Size: 8 ft (2.44 m)
✓Machine Weight: 24,900 lb (11,294 kg)
✓Power Source: Diesel
✓Dimensions: 35 ft 1 in (L) x 8 ft 2 in (W) x 8 ft 10 in (H)
Genie Z-45 XC Boom Lift
The Genie Z-45 XC boom lift is an articulating boom lift that offers a maximum platform height of 45 ft (13.72 m) and a horizontal reach of 24 ft 11 in (7.59 m). This model is designed for jobs that require navigating around obstacles and accessing hard-to-reach areas. The Z-45 XC features the same dual lift capacity as other XC models, making it a versatile choice for a variety of applications, including maintenance, construction, and industrial tasks.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted.
✓Articulating boom: Allows for navigating around obstacles and accessing tight spaces.
✓Automatic envelope control: Ensures precise positioning and reduces repositioning.
✓Positive traction drive: Provides reliable performance on rough terrain.
✓Proportional boom and swing controls: Offer smooth and precise operation.
✓Rotating platform: Enhances maneuverability and allows for precise positioning.
✓Four-wheel drive: Delivers excellent traction and mobility.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 51 ft (15.72 m)
✓Platform Size: 6 ft (1.83 m)
✓Machine Weight: 14,600 lb (6,622 kg)
✓Power Source: Diesel
✓Dimensions: 21 ft 8 in (L) x 5 ft 10 in (W) x 6 ft 11 in (H)
Genie Z-60 XC Boom Lift
The Genie Z-60 XC boom lift is another articulating boom lift in the Xtra Capacity range, offering a maximum platform height of 60 ft (18.3 m) and a horizontal reach of 40 ft 10 in (12.44 m). This model combines the benefits of articulating booms with the increased lifting capacity of the XC range. The Z-60 XC is well-suited for applications that require reaching over obstacles and lifting heavier loads, such as structural steel erection and maintenance tasks.
Key Features
✓Dual lift capacity: 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted.
✓Articulating boom: Allows for navigating around obstacles and accessing tight spaces.
✓Automatic envelope control: Ensures precise positioning and reduces repositioning.
✓Positive traction drive: Provides reliable performance on rough terrain.
✓Proportional boom and swing controls: Offer smooth and precise operation.
✓Rotating platform: Enhances maneuverability and allows for precise positioning.
✓Four-wheel drive: Delivers excellent traction and mobility.
✓Durable steel construction: Ensures long-lasting performance and reliability.
Technical Specifications
✓Lifting Capacity: 660 lb (300 kg) unrestricted / 1,000 lb (454 kg) restricted
✓Maximum Height: 66 ft (20.39 m)
✓Platform Size: 8 ft (2.44 m)
✓Machine Weight: 22,700 lb (10,300 kg)
✓Power Source: Diesel
✓Dimensions: 27 ft 3 in (L) x 8 ft 2 in (W) x 8 ft 7 in (H)
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie S-60 XC
Genie S-65 XC
Genie S-80 XC
Genie S-85 XC
Genie Z-45 XC
Genie Z-60 XC
Lifting Capacity (Unrestricted)
660 lb (300 kg)
660 lb (300 kg)
660 lb (300 kg)
660 lb (300 kg)
660 lb (300 kg)
660 lb (300 kg)
Lifting Capacity (Restricted)
1,000 lb (454 kg)
1,000 lb (454 kg)
1,000 lb (454 kg)
1,000 lb (454 kg)
1,000 lb (454 kg)
1,000 lb (454 kg)
Maximum Height
66 ft (20.12 m)
71 ft (21.64 m)
86 ft (26.21 m)
91 ft (27.74 m)
51 ft (15.72 m)
66 ft (20.39 m)
Platform Size
8 ft (2.44 m)
8 ft (2.44 m)
8 ft (2.44 m)
8 ft (2.44 m)
6 ft (1.83 m)
8 ft (2.44 m)
Machine Weight
17,200 lb (7,802 kg)
17,700 lb (8,029 kg)
24,200 lb (10,977 kg)
24,900 lb (11,294 kg)
14,600 lb (6,622 kg)
22,700 lb (10,300 kg)
Stowed Height
8 ft 3 in (2.51 m)
8 ft 3 in (2.51 m)
8 ft 10 in (2.69 m)
8 ft 10 in (2.69 m)
6 ft 11 in (2.11 m)
8 ft 7 in (2.62 m)
Stowed Length
26 ft 10 in (8.18 m)
27 ft 10 in (8.48 m)
34 ft 2 in (10.41 m)
35 ft 1 in (10.69 m)
21 ft 8 in (6.60 m)
27 ft 3 in (8.31 m)
Stowed Width
8 ft (2.44 m)
8 ft (2.44 m)
8 ft 2 in (2.49 m)
8 ft 2 in (2.49 m)
5 ft 10 in (1.78 m)
8 ft 2 in (2.49 m)
Power Source
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Lift Speed
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Travel Speed
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Controls
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Best Application
General Construction
Higher Reach Construction
Large-Scale Projects
High-Rise Construction
Confined Spaces
Overcoming Obstacles
Frequently Asked Questions
What is the primary benefit of the Genie XC range?
The primary benefit of the Genie XC range is its increased lift capacity, allowing operators to lift heavier loads and more materials at once. This enhances productivity and reduces the need for multiple trips, saving time and resources on the job site. The dual-envelope control system also contributes to increased efficiency.
What types of applications are Genie XC boom lifts best suited for?
Genie XC boom lifts are well-suited for a wide range of applications, including construction, maintenance, infrastructure projects, and industrial tasks. They are particularly useful for jobs that require lifting heavy materials to elevated positions, such as structural steel erection, precast concrete installation, and bridge maintenance.
How does the dual lift capacity of Genie XC boom lifts enhance safety?
The dual lift capacity of Genie XC boom lifts enhances safety by allowing operators to lift heavier loads within the specified limits. The load sense technology and automatic envelope control system help prevent overloading and ensure that the machine operates within its safe working range, reducing the risk of accidents and equipment damage.
What is the difference between the Genie S-series and Z-series XC boom lifts?
The Genie S-series XC boom lifts are telescopic boom lifts, which offer a straight reach and are ideal for jobs that require maximum height and horizontal extension. The Genie Z-series XC boom lifts are articulating boom lifts, which offer greater maneuverability and are designed for navigating around obstacles and accessing hard-to-reach areas.
What are the key features that contribute to the rough terrain performance of Genie XC boom lifts?
Genie XC boom lifts are designed for rough terrain performance with features such as four-wheel drive, oscillating axles, and positive traction drive. These features ensure that the machine can maintain contact with the ground on uneven surfaces and provide reliable traction, allowing operators to work safely and efficiently in challenging environments.
How does the automatic envelope control system improve productivity?
The automatic envelope control system improves productivity by allowing for precise positioning and reducing the need for repositioning. This system monitors the machine’s operating parameters and automatically adjusts the boom’s position to maintain stability and prevent overloading, enabling operators to work more efficiently and safely.
Genie Telescopic boom lifts
Genie Telescopic boom lifts, also known as stick booms, are aerial work platforms designed to provide maximum horizontal outreach. These machines are characterized by their long, straight booms that extend telescopically, allowing operators to reach work areas that are difficult or impossible to access with other types of lifts. They are essential tools for a variety of industries, offering a stable and efficient platform for working at height.
The primary benefits of telescopic boom lifts include their exceptional reach, stability, and maneuverability. They are ideal for tasks such as construction, maintenance, inspection, and installation work in environments where obstacles or uneven terrain are present. Their ability to extend horizontally over obstructions makes them invaluable for accessing tight spaces and complex structures. They are particularly useful in applications like bridge work, stadium maintenance, and utility projects.
Genie S-40 XC
The Genie S-40 XC telescopic boom lift is designed to offer increased productivity with a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted. This model provides operators with a greater range of applications and the ability to carry more tools and materials. Its robust construction and reliable performance make it suitable for demanding jobsites.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓4 ft (1.22 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 23 ft 2 in (L) x 7 ft 10 in (W) x 8 ft 2 in (H)
Genie S-45 XC
The Genie S-45 XC telescopic boom lift builds upon the S-40 XC, offering a greater working height while retaining the dual lift capacity. This model is ideal for jobs requiring extra reach, such as construction, maintenance, and inspection tasks. The S-45 XC combines power and precision to deliver reliable performance in challenging environments.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓4 ft (1.22 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 23 ft 2 in (L) x 7 ft 10 in (W) x 8 ft 2 in (H)
Genie S-60 XC
The Genie S-60 XC is a versatile telescopic boom lift that provides a balance of height and outreach. With a working height of 66 ft and a dual lift capacity, this model is suitable for a wide range of applications, including general construction, maintenance, and installation work. Its rugged design and reliable performance make it a valuable asset on any jobsite.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓6 ft (1.83 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 26 ft 3 in (L) x 8 ft 2 in (W) x 8 ft 6 in (H)
Genie S-65 XC
The Genie S-65 XC telescopic boom lift delivers exceptional reach and lifting capacity, making it ideal for heavy-duty applications. With a maximum working height of 71 ft and a dual lift capacity, this model is well-suited for construction, bridge work, and other demanding tasks. Its robust construction and advanced features ensure reliable performance and increased productivity.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓6 ft (1.83 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 26 ft 3 in (L) x 8 ft 2 in (W) x 8 ft 6 in (H)
Genie S-80 XC
The Genie S-80 XC telescopic boom lift provides excellent reach and lifting capabilities for a wide range of applications. Boasting an 86 ft working height and dual lift capacity, this machine is well-suited for demanding construction, maintenance, and industrial tasks. The S-80 XC’s robust design ensures reliability and performance in challenging work environments.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓6 ft (1.83 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 34 ft 2 in (L) x 8 ft 2 in (W) x 8 ft 10 in (H)
Genie S-85 XC
The Genie S-85 XC telescopic boom lift is a high-reach solution for challenging job sites, providing exceptional reach and lifting capacity. With a maximum working height of 91 ft and dual lift capacity, it is ideal for construction, maintenance, and industrial applications requiring access to high areas. The S-85 XC combines power and precision for reliable performance.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓6 ft (1.83 m) rotating jib: Provides enhanced maneuverability and precise positioning.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓LED travel lights: Enhance visibility in low-light conditions.
✓Dimensions: 34 ft 2 in (L) x 8 ft 2 in (W) x 8 ft 10 in (H)
Genie SX-105 XC
The Genie SX-105 XC is a telescopic boom lift designed for extreme reach and heavy lifting. With a working height of 111 ft and a dual lift capacity, it excels in demanding applications such as construction, infrastructure projects, and industrial maintenance. Its robust design and advanced features ensure reliable performance and enhanced productivity on challenging job sites.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓Self-leveling platform: Provides a stable work surface on uneven terrain.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓Four-wheel drive: Enhances mobility and maneuverability.
✓Dimensions: 42 ft 8 in (L) x 8 ft 2 in (W) x 9 ft 10 in (H)
Genie SX-125 XC
The Genie SX-125 XC is a telescopic boom lift engineered for exceptional reach and heavy lifting capabilities. With a maximum working height of 131 ft and dual lift capacity, this model is ideal for construction, infrastructure, and industrial projects that require access to extreme heights. Its robust design and advanced features ensure reliable performance and increased productivity.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓Self-leveling platform: Provides a stable work surface on uneven terrain.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓Four-wheel drive: Enhances mobility and maneuverability.
✓Dimensions: 42 ft 8 in (L) x 8 ft 2 in (W) x 9 ft 10 in (H)
Genie SX-135 XC
The Genie SX-135 XC is a telescopic boom lift designed to provide unparalleled reach and lifting capabilities for the most demanding applications. With a working height of 141 ft and a dual lift capacity, this model is ideal for construction, infrastructure, and industrial projects requiring access to extreme heights and heavy loads. Its robust design and advanced features ensure reliable performance and enhanced productivity.
Key Features
✓Dual lift capacity: Offers both 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted capacity for versatile use.
✓Self-leveling platform: Provides a stable work surface on uneven terrain.
✓Positive Traction: Maintains traction on rough terrain for improved mobility.
✓Proportional boom and swing speed control: Allows for smooth and controlled operation.
✓Platform Load Sense: Ensures the platform is within its weight capacity, enhancing safety.
✓Thumb rocker steer: Enables easy and intuitive steering.
✓CAN-based control system: Simplifies diagnostics and troubleshooting.
✓Four-wheel drive: Enhances mobility and maneuverability.
✓Dimensions: 42 ft 8 in (L) x 8 ft 2 in (W) x 9 ft 10 in (H)
Product Comparison
Compare all models to find the right equipment for your needs.
Specification
Genie S-40 XC
Genie S-45 XC
Genie S-60 XC
Genie S-65 XC
Genie S-80 XC
Genie S-85 XC
Genie SX-105 XC
Genie SX-125 XC
Genie SX-135 XC
Lifting Capacity
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
660/1,000 lb
Maximum Height
46 ft
51 ft
66 ft
71 ft
86 ft
91 ft
111 ft
131 ft
141 ft
Platform Size
30 x 72 in
30 x 72 in
30 x 72 in
30 x 72 in
30 x 72 in
30 x 72 in
36 x 96 in
36 x 96 in
36 x 96 in
Machine Weight
13,500 lb
14,300 lb
16,500 lb
17,300 lb
24,300 lb
24,800 lb
37,600 lb
41,400 lb
44,600 lb
Stowed Height
8 ft 2 in
8 ft 2 in
8 ft 6 in
8 ft 6 in
8 ft 10 in
8 ft 10 in
9 ft 10 in
9 ft 10 in
9 ft 10 in
Stowed Length
23 ft 2 in
23 ft 2 in
26 ft 3 in
26 ft 3 in
34 ft 2 in
34 ft 2 in
42 ft 8 in
42 ft 8 in
42 ft 8 in
Stowed Width
7 ft 10 in
7 ft 10 in
8 ft 2 in
8 ft 2 in
8 ft 2 in
8 ft 2 in
8 ft 2 in
8 ft 2 in
8 ft 2 in
Power Source
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Lift Speed
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Travel Speed
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Varies
Controls
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Proportional
Best Application
General Construction
Construction, Maintenance
General Maintenance
Bridge Work
Industrial Tasks
High-Reach Projects
Infrastructure
Extreme Heights
Demanding Applications
Frequently Asked Questions
What are the primary benefits of using a telescopic boom lift?
Telescopic boom lifts offer exceptional horizontal reach, allowing access to areas that are difficult to reach with other types of lifts. They provide a stable platform for working at height, enhancing safety and productivity. Additionally, their maneuverability and ability to navigate obstacles make them ideal for complex job sites.
What type of terrain can Genie telescopic boom lifts handle?
Genie telescopic boom lifts are designed to handle a variety of terrains, including rough and uneven surfaces. Models equipped with positive traction and four-wheel drive offer enhanced mobility and stability on challenging job sites. This ensures that operators can safely and efficiently access work areas regardless of the terrain.
What is the difference between unrestricted and restricted lift capacity?
Unrestricted lift capacity refers to the maximum weight the platform can hold when the boom is fully extended. Restricted lift capacity allows for a higher weight limit, but the boom’s range of motion may be limited to maintain stability and safety. This dual capacity provides greater flexibility for different types of jobs and loads.
What safety features are included in Genie telescopic boom lifts?
Genie telescopic boom lifts are equipped with several safety features, including platform load sensing, which ensures the platform is within its weight capacity. Proportional controls allow for smooth and controlled operation, while features like positive traction and four-wheel drive enhance stability and maneuverability. Emergency stop buttons and alarms are also standard.
What maintenance is required for Genie telescopic boom lifts?
Regular maintenance is crucial for ensuring the safe and reliable operation of Genie telescopic boom lifts. This includes routine inspections, lubrication of moving parts, checking fluid levels, and inspecting tires or tracks. Following the manufacturer’s recommended maintenance schedule and addressing any issues promptly can help prevent breakdowns and extend the lifespan of the equipment.
How do I choose the right Genie telescopic boom lift for my project?
Selecting the appropriate Genie telescopic boom lift depends on several factors, including the required working height, lifting capacity, terrain conditions, and job site constraints. Evaluate the specific needs of your project and compare the specifications of different models to determine which lift best meets your requirements. Consulting with an equipment specialist can also provide valuable guidance.
