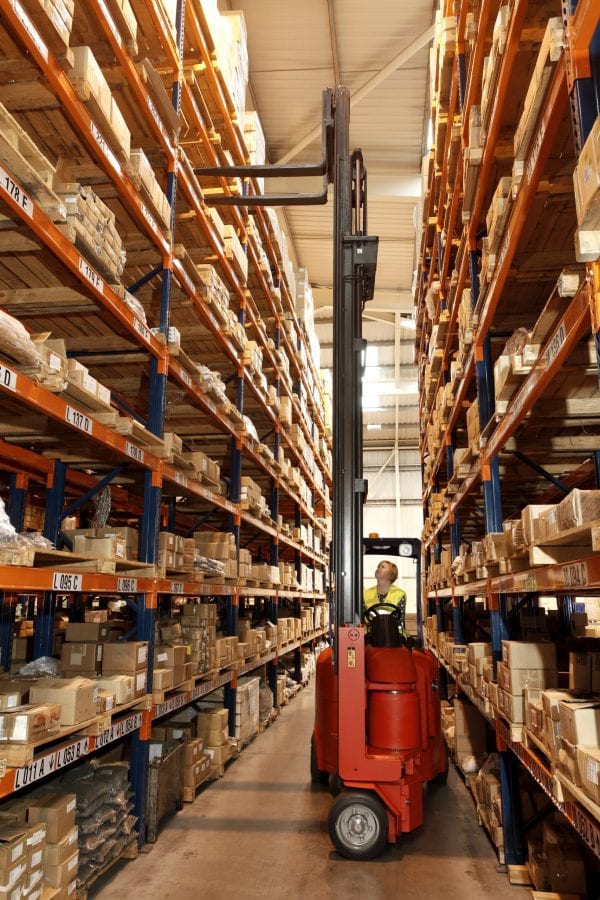

Flexi 22

The Flexi 22 provides faster and heavier load throughput capability for warehouses

  • Lift heights to over 11 metres
  • Heavy-duty 2.5T articulation system
  • Independent power steering motor and hydraulic pump to ensure smooth; kick free steering
  • Extended shift work due to digital motor technology
  • Operator Vision System (CCTV/LCD) options
  • Integrated programmable laser lift height selector
  • Safe efficient stacking optimises pallet movements
  • Heavy-duty Flexi for industrial customers who want to save space and increase pallet throughput
  • Loads up to 2.25 tonnes
  • Chassis width of 1250mm for optimum aisle way performance
  • Clear HiViS heavy-duty ‘space frame’ lift mast for unbeatable high-level stability and fork visibility
  • Three ‘brushless’ digital electric motors for long battery life and ultra-low servicing costs


Exceptional Lateral Stability

2.5 tonne, twin deck articulation, combined with heavy-duty 320mm diameter (22 tonnes) slewing ring bearing provide exceptional lateral stability high lift and long reliable service life.

Engineered for High Lift Capability

1250mm 2.25 tonne chassis, plus elastic rubber treaded rear tyres, delivers exceptional load rating and stability up to 11 metres of lift.

Heavy-Duty Mast Construction

Heavy-duty mast sections in the strengthened front frame, mounted in 2.5 tonne articulation unity, increases lift capacity and long term reliable operation.

High Definition LCD CCTV System

Allows operator to stack safely to over 11 metres with minimum fatigue. Available with programmable laser lift height selector both integrated into the digital CAN bus system.

As well as faster throughput capability it also provides the perfect solution for high bay, high-density storage, its perfect for any logistics warehouse.

  • Developed for lifting ISO and EURO pallets to 11.5 metres of lift.
  • Independent 1.8KW digital power steering motor and ‘whisper’ pump for low energy usage. Smooth and precise.
  • Heavy Duty Double-Deck 2.5 Tonne articulation system for optimum list mast stability
  • 2 Tonnes rated capacity at 600mm load centres up to 3.3 metres
  • Zapi digital drive technology means longer battery shift life and no maintenance costs on motors
  • Heavy-duty Flexi truck for industrial customers who want to save storage space and increase pallet throughput
  • Lift heights to over 11.5 metres
  • Choice of chassis widths 1250mm, 1350mm and 1400mm for optimum lift height and load weight performance
  • Unique HiViS heavy-duty lift mast as standard, space frame lift mast on 2.5 tonne model
  • Patented HiViS twin post safety head guard exceeds CE and US safety standards
  • Extended shift work from high capacity batteries AC motor technology and independent power steering
  • Independent 1.8kW power steering for safe, low noise hydraulic steering and low energy use
