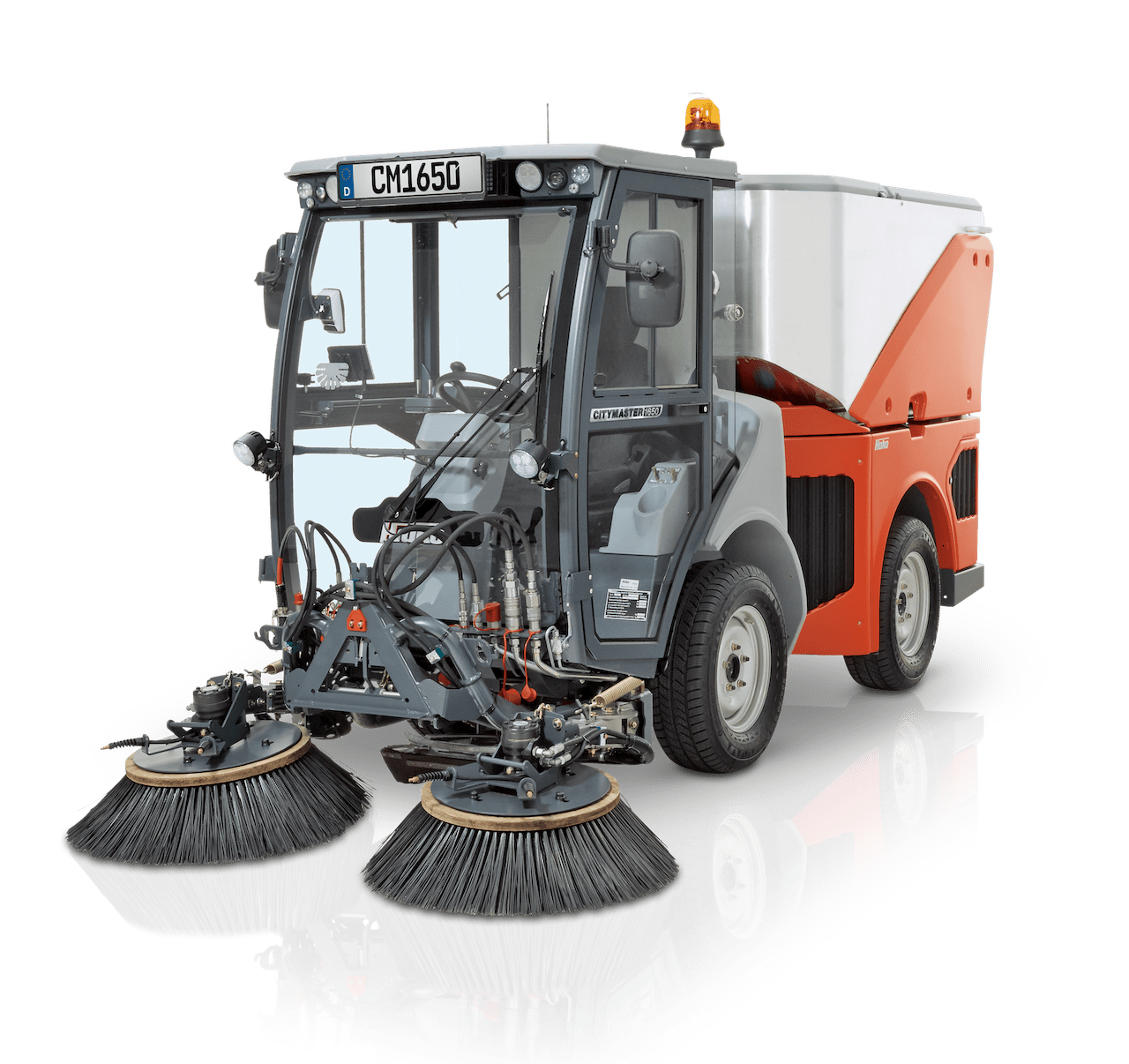

Hako CM1650 Outdoor Sweeper


Technical Data Citymaster 1650
Engine Water-cooled 4-cylinder industrial diesel engine with 1,952 ccm
Exhaust gas turbocharging + charge air cooling, particle filter, output 55 kW at 2,700 rpm
Common-rail direct fuel injection, tank capacity 50 l
Engine comes below the threshold value according to exhaust directive 2016 / 1628 / EC Stage V
Road approval EU type approval basic unit as a tractor (LoF) Drive
Traction- and energy-efficient optimized hydrostatic drive with permanent all-wheel drive
Drive control system with automatic load regulation in transport mode, 2-speed automatic transmission
3-level fixed rpm in work travel mode (1,600 rpm [ECO] – 2,000 rpm [Standard] – 2,400 rpm [MAX])
Hydraulics Load-sensing high pressure hydraulics with variable power distribution for rotatory consumers
Circuit 1 (front) 0-50/0-70 l/min @ 255 bar
Circuit 2 (rear) 0-20/25/30 I/min @ 195 bar
Hydraulic circuits at the front, 1 hydraulic circuit at the back
Speed Driving speed automotive 0 – 40 km/h
Work travel hydrostatic 0 – 24 km/h
Reverse 0 – 12 km/h
Steering and chassis Hydraulic 4-wheel chassis with articulated steering, steering angle 45°
Robust articulated joint with maintenance-free PTFE-coated bearings
Trailing-arm-guided, suspended front and rear axles, coil springs and hydraulic shock absorbers
Stabilizer at the rear axle
Brake system Hydrostatic brake acting on all four wheels, disc brake at the front with load-dependent support via drive control acting on both axles
Electrically activated multi-disc stop brake at the rear axle
Tyres 225/70 R15C (M+S road tyres standard)
255/65 R16C (M+S universal tyres § 35 StVO)
320/55-15 (lawn tyres)
Cabin 1 Seater comfort cabin with comfort driver’s seat and operating panel integrated in the armrest
Central display showing all the machine’s functions, adjustable steering column
Hot-water heating and optional air conditioning
Framed doors with sliding windows
Folding exterior mirrors, adjustable from the inside
Dead weights 2,035 kg (implement carrier), 2,550 kg (sweeper)
Permissible values total weight 3,500 kg, axle load 1,700/2,400 kg (front/rear)
Dimensions (H/W/L) Basic unit: 1,970 mm x 1,210 x 3,830 mm (standard tyres, without tow bar)
Sweeper: 1,970 mm x 1,210 x 4,510/5,170 mm (standard tyres 2B/3B)
Wheelbase 1,600 mm
Track width 975–1,055 mm
Inner turning radius 1,290 mm
