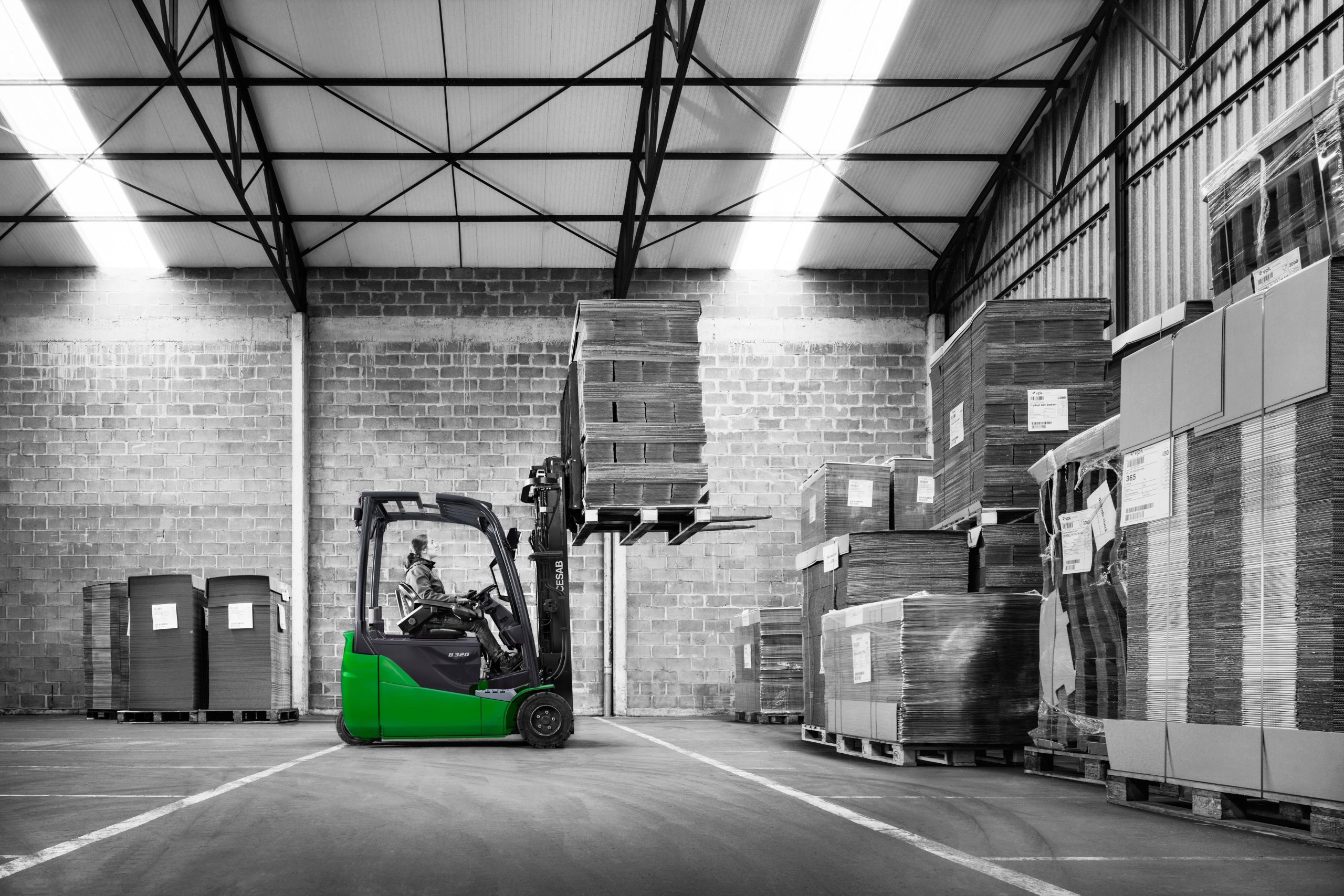

CESAB B300 Range (B315 – B320)

Categories: , ,

Description

Model Code B315-II
Power Unit Electric
Load Capacity (Q) 1500 kg
Load Centre (c) 500 mm
Lift Heights (h3) from 3000 mm
Travel Speed with/without load 16/16 km/h
Lifting Speed with/without load 0.44/0.61 m/s
Turning Radius (Wa) 1455 mm
Battery Voltage/Rated Capacity (5h) 48V / 420-500 Ah



Model Code B316-II B316L-II
Power Unit Electric  Electric
Load Capacity (Q) 1600 kg  1600 kg
Load Centre (c) 500 mm  500 mm
Lift Heights (h3) from 3000 mm  3000 mm
Travel Speed with/without load 16/16 km/h  16/16 km/h
Lifting Speed with/without load 0.43/0.61 m/s  0.43/0.61 m/s
Turning Radius (Wa) 1563 mm  1671 mm
Battery Voltage/Rated Capacity (5h) 48V / 525-625 Ah  48V / 630-750 Ah



Model Code B318-II B318L-II
Power Unit Electric  Electric
Load Capacity (Q) 1800 kg  1800 kg
Load Centre (c) 500 mm  500 mm
Lift Heights (h3) from 3000 mm  3000 mm
Travel Speed with/without load 16/16 km/h  16/16 km/h
Lifting Speed with/without load 0.42/0.61 m/s  0.42/0.61 m/s
Turning Radius (Wa) 1563 mm  1671 mm
Battery Voltage/Rated Capacity (5h) 48V / 525-625 Ah  48V / 630-750 Ah



Model Code B320-II
Power Unit Electric
Load Capacity (Q) 2000 kg
Load Centre (c) 500 mm
Lift Heights (h3) from 3000 mm
Travel Speed with/without load 16/16 km/h
Lifting Speed with/without load 0.38/0.61 m/s
Turning Radius (Wa) 1671 mm
Battery Voltage/Rated Capacity (5h) 48V / 630-750 Ah
