A Comprehensive Guide to Genie Articulated Boom Lifts

A Comprehensive Guide to Genie Articulated Boom Lifts

Articulated boom lifts, also known as knuckle booms, are aerial work platforms designed to provide maximum reach and versatility in accessing elevated work areas. These machines feature multiple boom sections that articulate or hinge, allowing operators to navigate around obstacles and reach tight spaces that traditional straight boom lifts cannot access. Their unique design makes them indispensable tools for a wide range of industries and applications.

The benefits of articulated boom lifts are numerous. They offer exceptional maneuverability, allowing for precise positioning and access in complex environments. Their ability to reach over and around obstacles makes them ideal for tasks such as maintenance, construction, and installation in areas with limited access. Furthermore, they enhance safety by providing a stable and secure platform for workers at height, reducing the risk of falls and accidents.

A Comprehensive Guide to Genie Articulated Boom Lifts

Genie is a leading manufacturer of aerial work platforms, renowned for their innovative designs, robust construction, and reliable performance. Their articulated boom lifts are engineered to meet the demands of various industries, offering a diverse range of models with different reach heights, lifting capacities, and power options. This article provides a comprehensive overview of the Genie articulated boom lift range, exploring the features and specifications of each model.

Genie Z-45/25J RT

The Genie Z-45/25J RT is a popular rough terrain articulated boom lift known for its versatility and reliability. It is designed to provide excellent reach and maneuverability in outdoor environments. This model is ideal for construction sites, maintenance projects, and other applications where access to elevated areas is challenging due to uneven terrain or obstacles. Its articulating jib allows for precise positioning and access to hard-to-reach areas.

Key Features

✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.

Technical Specifications

Lifting Capacity 500 lbs (227 kg)
Maximum Height 51 ft (15.77 m)
Platform Size 30 x 48 in (0.76 x 1.22 m)
Machine Weight 13,600 lbs (6,169 kg)
Power Source Diesel
Stowed Height 6 ft 11 in (2.11 m)
Stowed Length 22 ft 10 in (6.96 m)
Stowed Width 5 ft 9 in (1.75 m)
Lift Speed 45 seconds
Travel Speed 4.8 km/h
Controls Proportional
Drive System 4WD

Genie Z-60/37 FE

The Genie Z-60/37 FE is a fuel-electric hybrid articulated boom lift that combines the benefits of both electric and diesel power. This model is designed for indoor and outdoor use, offering quiet and emission-free operation in sensitive environments, as well as the power and performance needed for demanding outdoor applications. Its articulating jib and extended reach make it suitable for a wide range of tasks, including maintenance, construction, and installation.

Key Features

✓Fuel-electric hybrid system – Offers both electric and diesel power options.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.

Technical Specifications

Lifting Capacity 500 lbs (227 kg)
Maximum Height 65 ft 7 in (20.16 m)
Platform Size 30 x 48 in (0.76 x 1.22 m)
Machine Weight 16,700 lbs (7,575 kg)
Power Source Diesel/Electric Hybrid
Stowed Height 8 ft 2 in (2.49 m)
Stowed Length 26 ft 10 in (8.18 m)
Stowed Width 8 ft 1 in (2.46 m)
Lift Speed 60 seconds
Travel Speed 4.8 km/h
Controls Proportional
Drive System 4WD

Genie Z-80/60

The Genie Z-80/60 is a high-reach articulated boom lift designed for demanding applications that require maximum height and outreach. This model offers exceptional performance and versatility, making it suitable for construction, maintenance, and installation projects in challenging environments. Its articulating jib and extended reach allow operators to access hard-to-reach areas with ease.

Key Features

✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Rough terrain tires – Offers superior traction on uneven surfaces.
✓Positive Traction System – Maintains equal power distribution for smooth operation on challenging terrain.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Self-leveling platform – Maintains a level platform even on sloped surfaces.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓AC power to platform – Allows the use of power tools at height.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.
✓XChassis system – Retracts to a narrow profile for transport and extends for stability.

Technical Specifications

Lifting Capacity 660 lbs (300 kg)
Maximum Height 85 ft 6 in (25.91 m)
Platform Size 36 x 96 in (0.91 x 2.44 m)
Machine Weight 35,700 lbs (16,193 kg)
Power Source Diesel
Stowed Height 9 ft 10 in (3 m)
Stowed Length 39 ft 4 in (12 m)
Stowed Width 8 ft 2 in (2.49 m)
Lift Speed 70 seconds
Travel Speed 4.8 km/h
Controls Proportional
Drive System 4WD

Genie Z-40/23N

The Genie Z-40/23N is a narrow electric articulated boom lift designed for indoor and outdoor applications where space is limited. Its compact dimensions and zero tailswing make it ideal for maneuvering in tight spaces, such as warehouses, factories, and retail environments. The articulating jib and precise controls allow operators to access hard-to-reach areas with ease.

Key Features

✓Narrow chassis – Allows access to confined spaces.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Zero tailswing – Minimizes the risk of collisions in tight environments.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓Non-marking tires – Prevents damage to floors in indoor environments.
✓AC power to platform – Allows the use of power tools at height.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.

Technical Specifications

Lifting Capacity 485 lbs (220 kg)
Maximum Height 45 ft 3 in (13.87 m)
Platform Size 30 x 48 in (0.76 x 1.22 m)
Machine Weight 10,300 lbs (4,672 kg)
Power Source Electric
Stowed Height 6 ft 7 in (2.01 m)
Stowed Length 19 ft 8 in (5.99 m)
Stowed Width 4 ft 11 in (1.5 m)
Lift Speed 50 seconds
Travel Speed 4.8 km/h
Controls Proportional
Drive System 2WD

Genie Z-33/18

The Genie Z-33/18 is an ultra-compact electric articulated boom lift designed for indoor applications where space is extremely limited. Its lightweight design and non-marking tires make it ideal for use on sensitive floors, while its articulating jib and precise controls allow operators to access hard-to-reach areas with ease. This model is perfect for maintenance, installation, and cleaning tasks in retail environments, offices, and other confined spaces.

Key Features

✓Ultra-compact design – Allows access to extremely confined spaces.
✓Articulating jib boom – Provides enhanced maneuverability and access over obstacles.
✓Lightweight design – Minimizes floor load and allows for easy transport.
✓Non-marking tires – Prevents damage to floors in indoor environments.
✓Proportional lift and drive controls – Ensures smooth and precise operation.
✓AC power to platform – Allows the use of power tools at height.
✓On-board diagnostics – Simplifies troubleshooting and maintenance.
✓Tilt alarm and drive cut-out – Enhances safety by preventing operation on excessive slopes.

Technical Specifications

Lifting Capacity 440 lbs (200 kg)
Maximum Height 39 ft 4 in (12 m)
Platform Size 24 x 47 in (0.61 x 1.19 m)
Machine Weight 7,700 lbs (3,493 kg)
Power Source Electric
Stowed Height 6 ft 7 in (2 m)
Stowed Length 14 ft 5 in (4.39 m)
Stowed Width 3 ft 11 in (1.19 m)
Lift Speed 40 seconds
Travel Speed 4.8 km/h
Controls Proportional
Drive System 2WD

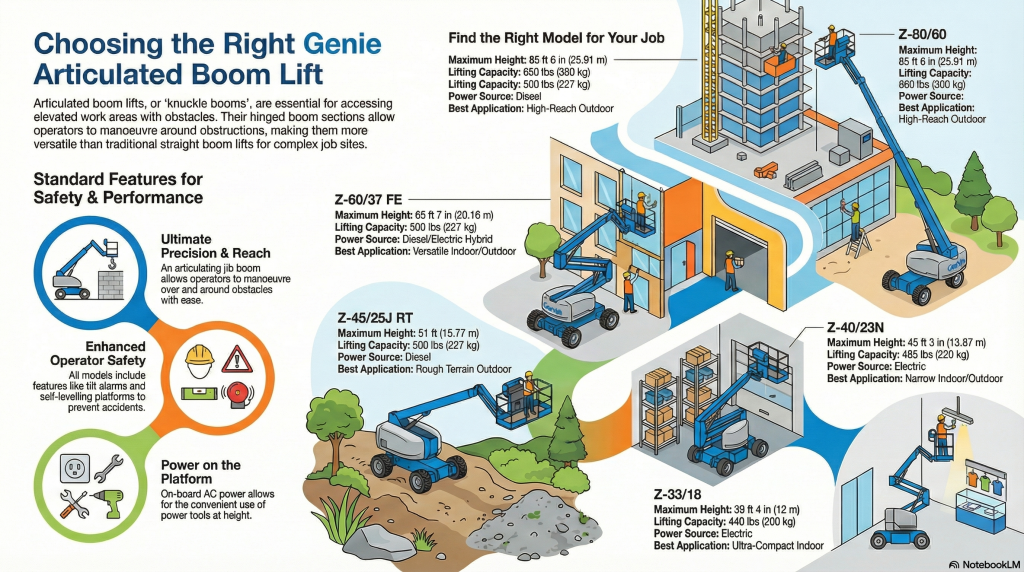

Product Comparison

Compare all models to find the right equipment for your needs.

Specification Genie Z-45/25J RT Genie Z-60/37 FE Genie Z-80/60 Genie Z-40/23N Genie Z-33/18
Lifting Capacity 500 lbs (227 kg) 500 lbs (227 kg) 660 lbs (300 kg) 485 lbs (220 kg) 440 lbs (200 kg)
Maximum Height 51 ft (15.77 m) 65 ft 7 in (20.16 m) 85 ft 6 in (25.91 m) 45 ft 3 in (13.87 m) 39 ft 4 in (12 m)
Platform Size 30 x 48 in (0.76 x 1.22 m) 30 x 48 in (0.76 x 1.22 m) 36 x 96 in (0.91 x 2.44 m) 30 x 48 in (0.76 x 1.22 m) 24 x 47 in (0.61 x 1.19 m)
Machine Weight 13,600 lbs (6,169 kg) 16,700 lbs (7,575 kg) 35,700 lbs (16,193 kg) 10,300 lbs (4,672 kg) 7,700 lbs (3,493 kg)
Stowed Height 6 ft 11 in (2.11 m) 8 ft 2 in (2.49 m) 9 ft 10 in (3 m) 6 ft 7 in (2.01 m) 6 ft 7 in (2 m)
Stowed Length 22 ft 10 in (6.96 m) 26 ft 10 in (8.18 m) 39 ft 4 in (12 m) 19 ft 8 in (5.99 m) 14 ft 5 in (4.39 m)
Stowed Width 5 ft 9 in (1.75 m) 8 ft 1 in (2.46 m) 8 ft 2 in (2.49 m) 4 ft 11 in (1.5 m) 3 ft 11 in (1.19 m)
Power Source Diesel Diesel/Electric Hybrid Diesel Electric Electric
Lift Speed 45 seconds 60 seconds 70 seconds 50 seconds 40 seconds
Travel Speed 4.8 km/h 4.8 km/h 4.8 km/h 4.8 km/h 4.8 km/h
Controls Proportional Proportional Proportional Proportional Proportional
Best Application Rough Terrain Outdoor Versatile Indoor/Outdoor High Reach Outdoor Narrow Indoor/Outdoor Ultra-Compact Indoor

Frequently Asked Questions

What is the primary advantage of an articulated boom lift over a telescopic boom lift?

Articulated boom lifts excel in maneuvering around obstacles and accessing tight spaces due to their multiple hinged boom sections. This allows them to reach areas that a telescopic boom lift, which extends in a straight line, simply cannot access. This makes them ideal for complex environments with obstructions.

What safety features are standard on Genie articulated boom lifts?

Genie articulated boom lifts come equipped with a range of safety features, including tilt alarms, drive cut-outs, self-leveling platforms, and proportional controls for smooth operation. These features are designed to enhance operator safety and prevent accidents while working at height.

What is the difference between a rough terrain and an electric articulated boom lift?

Rough terrain articulated boom lifts are typically powered by diesel engines and equipped with rugged tires and four-wheel drive for superior traction on uneven surfaces. Electric articulated boom lifts are powered by batteries and designed for indoor use, offering quiet and emission-free operation.

What factors should I consider when choosing an articulated boom lift for my project?

When selecting an articulated boom lift, consider the maximum height and reach required, the lifting capacity needed, the terrain conditions, and any space limitations. Also, consider the power source (electric, diesel, or hybrid) that best suits your application and environmental requirements.

How often should an articulated boom lift be serviced?

Regular maintenance is crucial for ensuring the safe and reliable operation of an articulated boom lift. The service schedule will vary depending on the specific model and usage, but it is generally recommended to perform routine inspections and maintenance at least every three months or 150 hours of operation, whichever comes first. Consult the manufacturer’s guidelines for detailed maintenance recommendations.

Can articulated boom lifts be used indoors?

Yes, certain models of articulated boom lifts, particularly those powered by electricity, are specifically designed for indoor use. These models typically feature non-marking tires to protect floors and offer quiet, emission-free operation, making them suitable for warehouses, factories, and retail environments.
